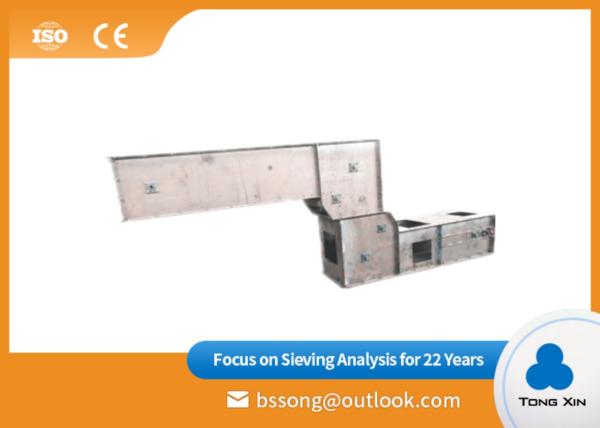

All Sealed Structure Z Type Industrial Bucket Elevator Wear-Resisting Lime

Description

The Z type chain bucket elevator, takes product (usually from a Vibrating Feeder) up to a higher level. It takes product in its buckets, convey the buckets vertically up and feed into the target equipment.

The bucket elevator has the features of large conveying capacity, high lifting height and so on. This equipment is made of stainless steel and food grade plastic polypropylene (ABS) which is hygienic and safe for food. It starts and stops feeding automatically with the help of control circuit and lever sensor.

Features

1. Easy installation and operate;

2. Energy saving;

3. The material is zero broken;

4. Heavy duty motor mount;

5. Adjustable chain;

6. Multi-point feeding and multi-poiint unloading;

7. no raise dust, no leak;

8. Smooth running&quiet.

Applicable Fields of Belt Conveyor

ZTD bucket elevator is suitable for vertical lifting conveying powder, granular and small pieces of small grinding absorption of bulk materials, such as food, coal, cement, ore, etc., widely used in: food industry, cosmetics industry, health food industry, chemical medicine, hardware and electricity industry, metallurgical manufacturing industry, mining, etc.

Working Principle

The incoming product is fed to the bucket elevator continuously and very gently by means of a vibratory feeder; the edges of the buckets overlap each other in the inlet section and therefore prevent spillage of kernels. Due to the pivoted mounting of buckets in the chain, buckets keep their horizontal position all through the way around in the conveyor until they finally reach the outlet.

There, each bucket is tilted and the product falling out is gently led into the outlet hopper; the bucket elevator can be equipped with a number of several inlets and outlets.

Inlets can work at the same time, while outlets are used singular, meaning only one outlet being active momentarily.

Technical Parameters

Note: this is only for reference and products specification should be studied from the real products provided. Can be customized according to customer requirements.

Our Service

1. We Provide video installation instructions;
2. We offer 24-hour online consulting service;
3. 20 years production experience to ensure quality;
4. We have thorough data to ensure the quality;
5. We provide detailed instruction an product information.

If you want to get more information of product, please contact us!
