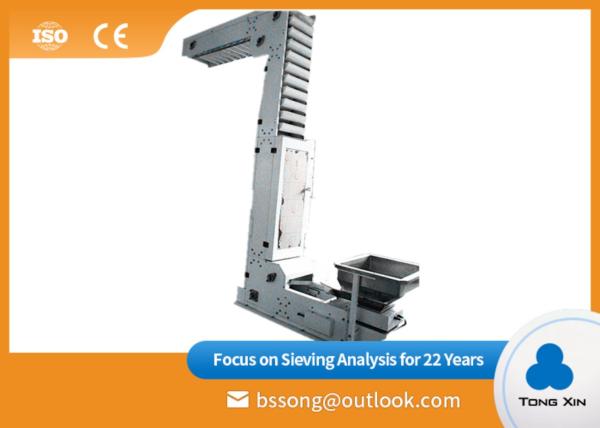

Mountain Flour Z Type Bucket Elevator Food Metallurgy Industry Size Grading

Description

The Z type chain bucket elevator, takes product (usually from a Vibrating Feeder) up to a higher level. It takes product in its buckets, convey the buckets vertically up and feed into the target equipment.

The bucket elevator has the features of large conveying capacity, high lifting height and so on. This equipment is made of stainless steel and food grade plastic polypropylene (ABS) which is hygienic and safe for food. It starts and stops feeding automatically with the help of control circuit and lever sensor.

Features

1. It is also a kind of equipment with a long service life and a unique material structure, so there is basically no wear and tear and it can run for a long time.

2. Output controllable: with frequency converter and vibration feeder can control different output.

3. Low noise: there is basically no noise during the operation.

Applicable Fields of Belt Conveyor

Working Principle

The hopper scoops up the material from the storage below and then lifts it to the top along the conveyor belt or chain. After passing the top wheel, it flips down. The z-type elevator pours the material into the receiving trough.

The driving belt of the z-type elevator with drive generally adopts rubber belt, which is mounted on the driving drum below or above and the reversing drum above and below.

Chain drive of the z-type hoist is generally equipped with two parallel transmission chain, or below a pair of transmission sprocket, or above a pair of steering sprocket. The z-type elevator is usually equipped with a housing to prevent dust from flying in the z-type elevator.

Technical Parameters

Note: this is only for reference and products specification should be studied from the real products provided. Can be customized according to customer requirements

Our Service

1. We Provide video installation instructions;
2. We offer 24-hour online consulting service;
3. 20 years production experience to ensure quality;
4. We have thorough data to ensure the quality;
5. We provide detailed instruction an product information.

If you want to get more information of product, please contact us!
