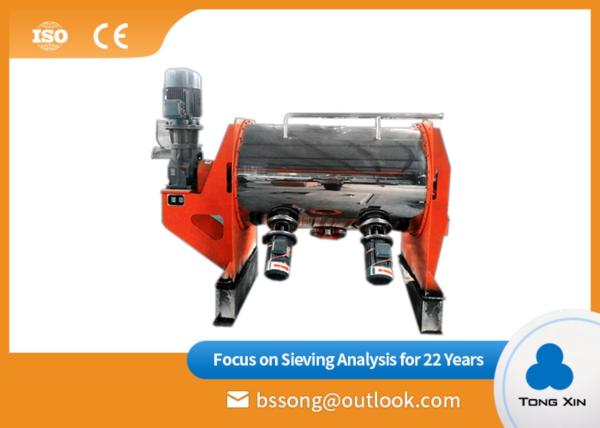

Food Industry Coulter Mixing Equipment Solid Liquid Steady And Sealed Operation
Food Industry Coulter Mixing Equipment Solid Liquid Steady And Sealed Operation
Specifications
Brand Name :
Tongxin
Model Number :
DSH
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets/month
Delivery Time :
According to the order quantity
Packaging Details :
Export wooden case packing
Condition :
New
Application :
Chemicals Processing, Powder
Mixer Type :
Paddle
Product Type :
Powder
Additional Capabilities :
Milling
Voltage :
380V/450V
After-sales Service :
Engineers available to service machinery overseas
Warranty :
1 Year
Description

Xinxiang Tongxin Source Manufacturer Coulter Mixing Machine Liquid-Liquid


Introduction

Horizontal plough mixer is a Germany-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush.

The agitator consists of multi-group of plough and fly-cutter which works together to mixing, smash, and dispersing materials. It is widely used in the mixing of powder=powder, powder-liquid and powder-particles, especially for the materials which may get aggregation during mixing. Liquid can be sprayed into powders. Vacuum system and drying system are also in option.

Features

Major Sections Barrel, coulter agitators, feeding parts, discharging part and driven unit,fly cutter can be choosed.
Sizes Available from 50Liter to 10000 Liters.
Material Carbon Steel, Stainless Steel 304, Stainless Steel 316L
Discharge Pneumatic valve,Flap valve, butterfly valve, slide gate valve, ball valve
Speed Controls such as variable frequency drives, motor starters and operator stations are available.
Temperature Mixer can be equipped with heating or cooling jacket if temperature control is required, Spray nozzles for liquid introduction,
Application Powder and liquid mixing, like Food, Pharmaceutics; Agriculture; Dyestuff; Chemicals.

Display of Detail

Food Industry Coulter Mixing Equipment Solid Liquid Steady And Sealed Operation

Apply in Industry

Food Industry Coulter Mixing Equipment Solid Liquid Steady And Sealed Operation

Suitable for the mixing of pharmacy, food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.

Working Principle

Food Industry Coulter Mixing Equipment Solid Liquid Steady And Sealed Operation

Agglomerating materials, such as fiber or powder with moisture or condensation, can be broken up and separated by using high-speed flying knife installed in the plough blade mixer and the convection and circulation effect formed when the plough blade mixer mixes the materials.

The high speed flying knife is installed at a 45 degree Angle under the side of the mixing barrel of the plough knife mixer, and the cutting head is extended into the barrel. During stirring, the material is driven to the effective range of the flying knife by the plough knife, and is subject to the high speed shearing of the flying knife.

The plough cutter in the mixer rotates with the spindle to make the material along the barrel arm and make the radial circular turbulence, at the same time, the radial material along the line flows through the flying knife group, which is scattered by the high-speed rotating flying knife, continuously changing and compounding, so that the material can be mixed evenly in a relatively short time.

Technical Parameters

Specification LDH-0.3 LDH-0.5

LDH-1

 LDH-2 LDH-3 LDH-4 LDH-6 LDH-8 LDH-10 LDH-15
Working Capacity(m3) 0.18 0.3 0.6 1.2 1.8 2.4 3.6 4.8 6 9
Batch Production(KG) 200 300 600 1200 1800 2500 3600 5000 6000 9000
Speed (r/min) 130 130 85 63 63 42 42 33 33 28
Power (KW) 5.5 7.5 11 15 22 30 45 55 75 90
Weight (KG) 550 800 1000 1800 2500 3500 4200 4800 5800 7000
L 2200 2700 3200 4100 4350 4700 5400 6500 5600 6000
C 900 980 1000 1250 1450 1500 1700 2200 2500 2800
H 900 1200 1350 1600 1800 1950 2300 2600 2900 3000

Note: The company reserves the right to modify all technical parameters and sizes. If the material object is inconsistent with the text, the material object shall prevail.


Our Service

1. We have professional engineer team ensure to provide the most professional equipment;

2. Professional engineers team can choose the right equipment for you;

3. We can provide thorough after-sales service to ensure the proper use of machine.

4. We can provide OEM customization.

If you want to get more information of product, please contact us!
