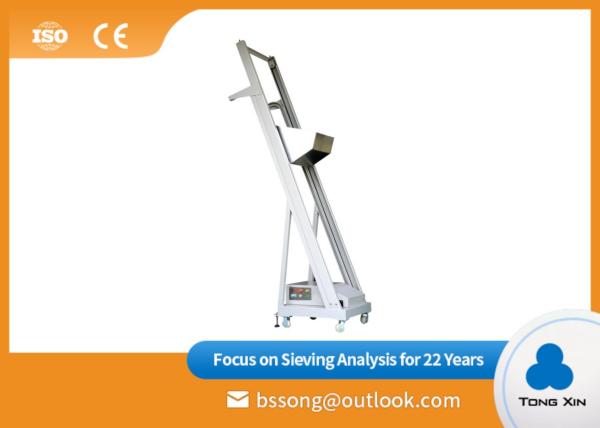

Food and Medical Z Bucket Elevator Fully Enclosed Lifting 40 m High Efficiency

Introduction

ZTD bucket elevator is a new type of material conveying equipment which has been successfully developed by our factory with the introduction of foreign advanced technology.

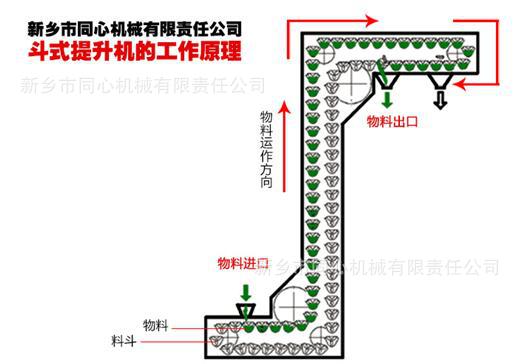

The elevator is in the closed shell, material is transported by the hopper suspended on the chain to achieve the combination of horizontal, vertical and horizontal conveying. Completely sealed, no leakage, no pollution.The lifting height can reach 40m.

Type Z bucket elevator with four kinds of hopper Q (shallow bucket), H (arc bottom bucket), ZD (deep bucket), SD (deep bucket). The main frame of the equipment can be used according to the different needs of carbon steel spray, 304 stainless steel, 316L stainless steel materials, hopper materials are plastic hopper, carbon steel hopper, stainless steel hopper optional.

Applications

1) ZTD bucket elevator is suitable for vertical lifting conveying powder, granular and small pieces of small grinding absorption of bulk materials, such as food, coal, cement, ore, etc., widely used in: food industry, cosmetics industry, health food industry, chemical medicine, hardware and electricity industry, metallurgical manufacturing industry, mining, etc..

2) Because of the traction mechanism of the hoist is a ring belt, it is not allowed to transport high temperature (not more than 70°) of the material.

Components

Shell, traction parts (conveyor chain), hopper, driving wheel (head wheel), steering wheel (tail wheel), tensioning device, guide device, feeding port, unloading port.

Features

1) The driving power is small, and the hopper intensive layout with large capacity is adopted, such as inflow feeding, induction unloading.

2) The lifting range is wide, this kind of lifting machine to the material kind, the characteristic request is little, so that it not only can promote the general powder shape and the small particle shape material, but also can promote the abrasive cut the material which is bigger.

3) The operation reliability of the z-type bucket elevator is good. The advanced design principle and processing method ensure the reliability of the whole machine, and the trouble-free time exceeds 20,000 hours. The hoist runs smoothly, so it can reach a higher lifting height.

4) The work life is long, the feed of the elevator adopts the inflow type, no need to use the bucket to dig the material, the phenomenon of extrusion and collision between the materials is rare. The machine is designed to ensure that the material is seldom scattered during feeding and unloading, which can reduce the mechanical abrasion.

Technology Parameter

In order for you to use worry-free, please consult customer service about the price and type selection of type Z bucket elevator, and then place an order!
