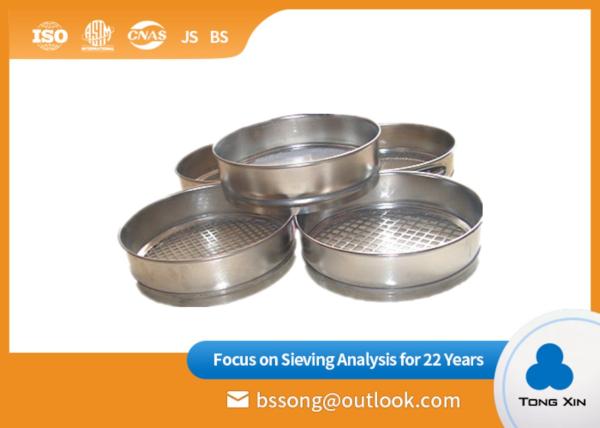

Round Screen Fine Mesh Standard Sieve 3mm-0.02mm Compact Structure Long Life Span
Round Screen Fine Mesh Standard Sieve 3mm-0.02mm Compact Structure Long Life Span
Specifications
Brand Name :
Tongxin
Model Number :
SYS
Certification :
ISO , ASTM , JS , BS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 sets/month
Delivery Time :
according to the order quantity
Packaging Details :
export wooden case packing
Mesh Size :
3mm-0.02mm
Usage :
Test equipment
Type :
Laboratory test sieve
Apply :
Laboratory
Weight :
0.5kg
Shape of Screen :
Round
Height :
50mm
Customized :
Can be customized
Description

Customized According To Requirement Standard Sieve Analysis Round Hole Ф300

Introduction


Lab separation screen machine widely used in quality inspection and other inspection departments of laboratory . It has the advantage of compact structure, low noise, high efficiency and high accurate.

High generator makes multiple high frequency vibration by which makes efficient screening and determination. And the working hours can be settled by electronic delayer.

Feature


1. Easy to use, wear-resistant, heat-resistant
2. Screen frame is produced by stainless steel stretching
3. Accurate mesh: subject to tool microscope and projector examination, without deformation for long term usage.

Specification

Specifications

 Material Stainless steel 304
Production Technology Weaving,Punching board, Electric forming
Production Standard ISO3310,GB6003,ASTM, TYLER, JIS, DIN, BSI,BIS
Sieve Diameter 75/100/200/203/300/400/600(mm)
Screen Frame Thickness 0.6-0.7mm
Height 25mm, 50mm or customized according to customer requirement
Shape round, square, rectangle
Mesh size 0.02mm-2.36mm

Structure:

1. Screen frame: polishing or not, according to customer requirements

2. Screen cloth: high precision woven wire mesh or perforated sheet

3. Screen cloth and frame are fixed by welding, can withstand temperatures up to 300 degree.

Technical Parameter

Taylor screen system in the United States United state and Canadian national standard

British standard

sieve pore(mm)

 International Organization Standard
screen size mesh size(mm)

principal series R20/3

(mm)

 ancillary series
current standard old standard Mesh Sieve pore (mm)

R20

(mm)

R40/3

(mm)
2.5 8.00 7.925 5/16 inch 8.00 8.00 8.00 8.00 8.00
3 6.70 6.680 1/4 inch 6.70 6.70 6.30 6.70
3.5 5.60 5.613 3.5 5.60 5.60 5.6 5.60 5.60
4 4.75 4.699 4 4.75 4.75 4.50 4.75
5 4.00 3.962 5 4.00 4.00 4.00 4.00 4.00
6 3.35 3.327 6 3.35 3.35 3.35 3.35
7 2.80 2.794 7 2.80 2.80 2.8 2.80 2.80
8 2.36 2.362 8 2.36 2.36 2.24 2.36
9 2.00 1.981 10 2.00 2.00 2.00 2.00 2.00
10 1.70 1.651 12 1.70 1.70 1.60 1.70
12 1.40 1.397 14 1.40 1.40 1.40 1.40 1.40


Apply in Industry

Round Screen Fine Mesh Standard Sieve 3mm-0.02mm Compact Structure Long Life Span

The test sieve is widely used in mineral, stone, ceramics, metallurgy, chemical, refractory, grain and other sectors of the classification of materials and small particle filter.

Our Advantage

The test screen of Tongxin company can be sent to the Quality and Technical Supervision Bureau for mesh detection, if not in line with the national standards for you free return and replacement. The follow is the compare of the quality with other companies.

Round Screen Fine Mesh Standard Sieve 3mm-0.02mm Compact Structure Long Life Span

Our Service

1. We provide 12 months quality warranty;
2. We have professional engineer team ensure to provide the most professional equipment;
3. Professional engineers team can choose the right equipment for you;
4. We can provide thorough after-sales service to ensure the proper use of machine;
5. We can provide OEM customization.

If you want to get more information of product, please contact us!
