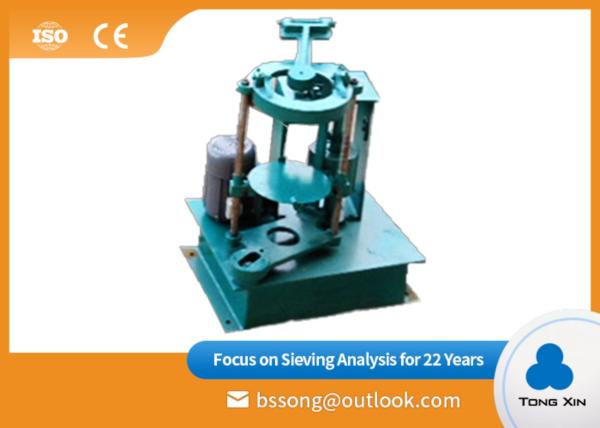

Double-set Slap Sieve Machine Low Factory Price Ore Various Mesh Silica Sand

Introduction

Slap sieve (slap-style standard sieve shaker), also known as slap-style shaker is one of the commonly used laboratory testing equipment, structure is mainly composed of base, screen tool and transmission mechanism parts, suitable for ordinary abrasive particle size composition of the inspection, super hard material production grade and size composition inspection.
Slap-style standard sieve shaker (slap sieve) mainly by the base, screen and transmission device and other components.
The slap screen can be equipped with a special fixture, can be clampingΦ200 test sieves and installed theΦ75,Φ100 sets of sieve, the clamping is convenient and flexible, reliable clamping and automatic shutdown.

Structure

Features

1. Ensure the repeatability of the test
2. Full functions, easy operation
3. Low noisy, light weight
4. Operating on the platform, needn't be fixed
5. It can adjust the amplitude

Apply in Industry

The slap type screen machine widely used in geological, powder metallurgy, abrasive, powder, chemical industry, building materials, medicine, national defense and other departments of laboratory screening detection, especially suitable for diamond powder, superhard material industry production classification process high strength, repeated frequent use.

Working Principle

Motor driven gear through the timing belt drive to the spindle, after the spindle speed by the gear required rotational speed, spindle driven eccentric to reciprocating motion skateboarding do to drive installed in the slide tray in the two groups both large and small mesh sieve test rock around the same time, push-rod gear driven spindle rotation speed after the ejector hit top gear by cam mandrel, mandrel to shoot down slap hammer test screen cover, making test sieve, sieve in the sub-sample of the material back and forth and up and down vibration , so that test is less than mesh sieve screen surface material particles into the lower screening test sieve, so layers of screening, so that each layer within the test screen, leaving only the same size material. To achieve the separation of different particle size and to determine the size distribution of this material.

Technical Parameters

Our Service

1. We offer 24-hour online consulting service;
2. 20 years production experience to ensure quality;
3. We have thorough data to ensure the quality;
4. We provide detailed instruction an product information;
5. We provide 12 months quality warranty.

If you want to get more information of product, please contact us!
