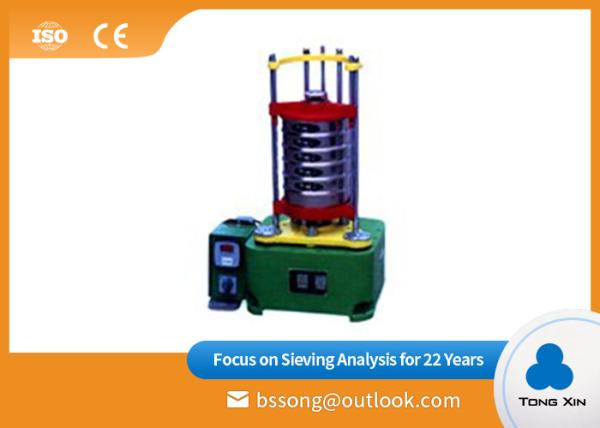

Tongxin Direct Supply Shaker Screen Vibrating Screen Whole Retail Low Price
Tongxin Direct Supply Shaker Screen Vibrating Screen Whole Retail Low Price
Specifications
Brand Name :
Tongxin
Model Number :
YBS
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets/month
Delivery Time :
According to the order quantity
Packaging Details :
Export wooden case packing
Type :
Circular
Condition :
New
Layer(s) :
1 - 2 layers
Usage :
Separation Screening
Function :
Particle size distribution classification
Material :
Stainless Steel
Port :
Tianjin Port
Warranty :
12 month
Description

Tongxin Direct Supply Shaker Screen Vibrating Screen Whole Retail Low Price



Description

The electrical control of an electronic counting controller, so that screening test is expected to be accurate within the screening times. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.

The machine can use 200mm and 300 mm diameter of standard sieve, Sieve can use 4 mesh to 400 mesh.

Features

Simple Operation Control panel with start switch, timer for easily controlling sieving process.
Up to 9 grades 1 to 8 layers can be installed based on test needs to screen 2 to 9 grades materials.
Wide Usage It can be used for analysis and inspection of powder, particle, slurry, almost all fine materials.
Friendly Use Low noise and light weight, platform operation, no need to fix.
Adjustable It can adjust the frequency, mode and amplitude of vibration at any time for different test purposes

Apply in Industry

Tongxin Direct Supply Shaker Screen Vibrating Screen Whole Retail Low Price

Chemical Industry Colophony, dope, industry leechdom, cosmetic, paint
Grinding Materials And china Industry Alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
Food Industry Sugar, amylum, rice powder, milk powder, soybean milk, angel cake, sauce, juice.
Paper-Making Industry Dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
Metallurgy, Mining Industry Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.

Working Principle

This machine is composed of motor through the transmission shaft, the turbine drives the swing frame side main eccentric shaft to rotate, and even drive the other two pair of eccentric shaft rotation, so that the entire screen group swing radius is obtained, the eccentricity of plane circle swing.

Technical Parameters

No. Name Units Size
1 Sieve diameter mm Φ200. Φ100. Φ75(Customized according to user requirements)
2 Sieve layer Layer 1-3
3 Φ200 test sieve Set Can provide a full range when user buy(0.005-150mm)
4 Shaking distance mm 25
5 Motor Power /Voltage W/V 90/220
Speed R/min 0-290(Arbitrary adjustable)
6 Dimensions mm Length × width × height
350:350:360
7 Ultrasonic Frequency HZ 40K
8 Screen Machine Weight kg 40
9 Trajectory A circular motion, close to circular motion

Note: can increase the negative pressure devices for users, Minimum screen to 5 microns.

Packing

Tongxin Direct Supply Shaker Screen Vibrating Screen Whole Retail Low Price


Our Advantage

Our company is a ISO9001:2000 certification enterprise, we cooperate with large domestic companies and some scientific research units. The follow picture is our long term cooperator.

Tongxin Direct Supply Shaker Screen Vibrating Screen Whole Retail Low Price

Our Service

1. We Provide video installation instructions;

2. We offer 24-hour online consulting service;

3. 20 years production experience to ensure quality;

4. We have thorough data to ensure the quality;

5. Professional engineers team can choose the right equipment for you;

6. We can provide thorough after-sales service to ensure the proper use of machine.

7. We can provide OEM customization.

If you want to get more information of product, please contact us!
