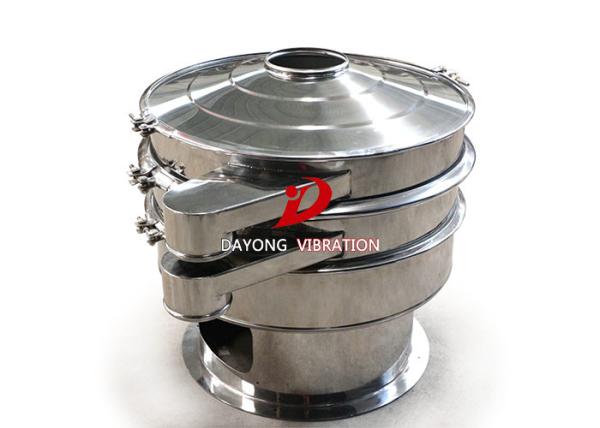

Movable Double Layer Metal Powder Sieving Machine Vertical Motor For Lead Oxide
Movable Double Layer Metal Powder Sieving Machine Vertical Motor For Lead Oxide
Specifications
Brand Name :
DY
Model Number :
DY-1000-3S
Certification :
CE & ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Sets Per Month
Delivery Time :
8 - 10 Working Days
Packaging Details :
Standard Export Standard Box Pac
Material :
Stainless Steel or Carbon Steel
Color :
Blue Or As Your Required
After-sales Service Provided :
Engineer Available To Service Machinery Overseas
Valid Diameter :
950mm
Layer :
1-3 Layers
Motor :
Vertical
Condition :
New
Function :
Screening, Filtering, Grading
Description

Movable Double Layer Customers Trust Siftering Machine For Lead Oxide

Product Introduction
Vibrating sieve machine as a piece of powdery material screening equipment, uses horizontal vibration motor or special vibration exciter as its vibration source. The horizontal vibration motor and vibration exciter have a eccentric block at the both at their upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined directions. By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.
Technical Parameters
Model Power(kw) Valid Diameter of screen(mm) Volume(mm) Layers
DY-600-1S
DY-600-2S
DY-600-3S		 0.55kw 550mm 800*800*680
800*800*780
800*800*880		 1
2
3
DY-800-1S
DY-800-2S
DY-800-3S		 0.75 kw 750mm 900*900*780
900*900*930
900*900*1080		 1
2
3
DY-1000-1S
DY-1000-2S
DY-1000-3S		 1.1 kw 950mm 1160*1160*880
1160*1160*1030
1160*1160*1180		 1
2
3
DY-1200-1S
DY-1200-2S
DY-1200-3S		 1.5 kw 1150 mm 1360*1360*980
1360*1360*1160
1360*1360*1360		 1
2
3
DY-1500-1S
DY-1500-2S
DY-1500-3S		 2.2 kw 1450mm 1850*1850*1130
1850*1850*1330
1850*1850*1550		 1
2
3
DY-1800-1S
DY-1800-2S
DY-1800-3S		 3 kw 1750mm 2200*2200*1360
2200*2200*1460
2200*2200*1680		 1
2
3

Main Advantages
1. High efficiency, compact design and durable, any powder, granules and slurry can be sieved.
2. Replacement screen easy, simple, easy to clean.
3. Mesh is not blocked, no powder flying, can screen to 500 mesh or 0.028mm.
4. Impurities, coarse automatic discharge, can be a continuous operation.
5. The unique grid design, mesh will use a long time, for only 3-5 minutes to replace screen.
6. Small size, little space and easy to move.
7. Sieving machines can reach 5 layers, it is recommended to use 3 layers.
Using Scope
1. Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4. Paper-making industry: coated slurry, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Company Information
Xinxiang Dayong Vibration Equipment Co., Ltd. specializes in manufacturing series of vibrating screen, and we could design, develop and produce by ourselves. At present, the main range of products include kinds of series of vibrating screens, vibrating separator and filter, ultrasonic vibrating screens, sifting machines, filtering machines, linear vibrating screens, testing screens, screw conveyor, bucket elevator, honey processing machine, grain cleaning machine, etc. We have our design team, and can design machine according your requirement. If you have any needs or questions, please don't hesitate to contact us, we shall be pleased to be of service to you at all times.
In future we adhere to high point of technology, high quality of service. In marketing, we wish to see development with friends from overseas and domestic on fair cooperation and mutual benefit.
