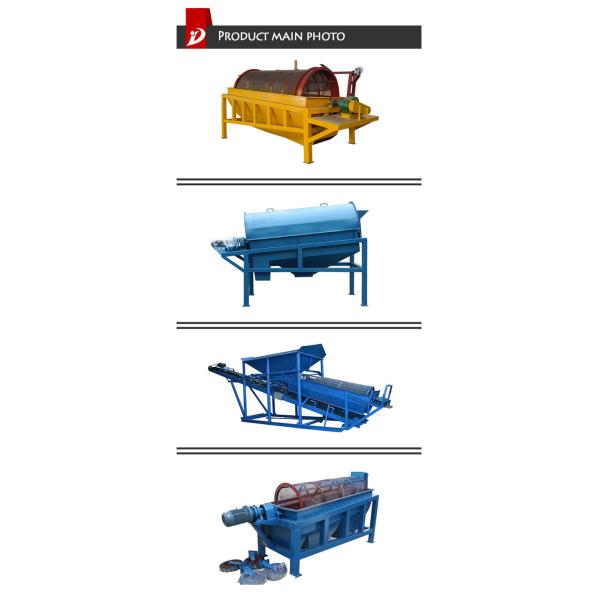

Limestone Drum Trommel Screen Mobile Vibrating Screen Machine

Product Application

1. Processing minerals such as ferrous metals including hematite & magnetite and nonferrous metals including Lead, Zinc, Gold and Silver etc.
2. Quarry large stones for grading. And separating dirt and powder.
3. Gravel field for sand separation with our gold mining equipment.
4. Lump coal and the coal industry for the separation and washing (part of the washing machine)
5. Chemical industry, mineral industry and for the size of the lumps grade separation powdery substance.

Working Principle

Roller device tilt installed on the rack. Motor by the reducer with roller device through shaft coupling, drive roller device around its axis of rotation. When the materials enter the cylinder device, due to tilt and turn the drum unit, make the material on the surface of the screen to flip and rolling, the qualified materials (undersize) after roller end at the bottom of the discharging mouth eduction, unqualified material (product) on the screen by the cylinder at the end of the discharging mouth eduction. Due to the flip, rolling material inside the drum, the card in the mesh material can be pop up, prevent the mesh plug.

Main Features

1. 10T/h to 300T/h heavy duty gold wash plants designed according to clients individual mining situation.
2. Hopper with grizzly to block out the big size rocks.
3. Belt conveying system available if required.
4. Separating system could be equipped with clay scrubber, gold trommel or vibrating screen according to different mining situations.
5. Gold recovery system could be equipped with belt chute, centrifugal concentrators sluice box with gold mat, shaking sluice, etc. to ensure highest recovery rate.
6. Power system could be equipped with diesel engine or diesel generator
7. Stationary or mobile type up to your choice.

Technical Parameters

Introduction of Trommel Screen

1.Trommel drum screen is mainly consists of motor, reducer, drum units, sealing cover, support, etc.
2.Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis.
3.When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer of trommel screen, substandard materials come out by the end of trommel screen.
