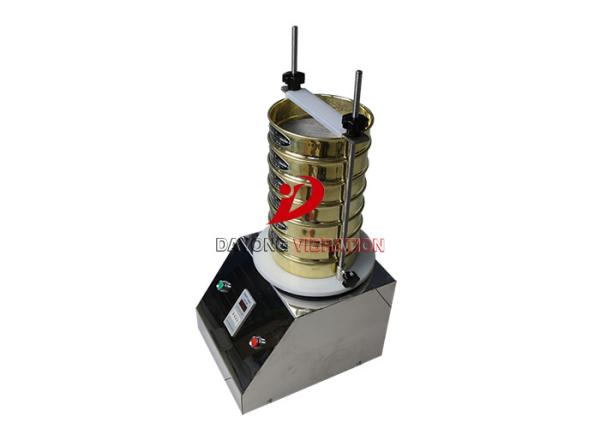

200mm Stainless Steel 1 Layers - 8 Layers Ultrasonic Sieve Shaker Machine

Product Introduction

DY laboratory test sieve adopts new type power generator that generates multivariate high-frequency vibration to sieve and filter samples efficiently.Meanwhile ,its standard screen makes sure sample analysis of high precision .At the same time,it uses upright motor as the source of vibration, The vertical motor, which is installed with eccentric hammers on the top and bottom, is regarded as vibratory source. The eccentric hammers change the track of rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle between the top and bottom eccentric weight can change trajectories of the materials on the sieve.

Product Advantages

1. The machine has the function of re-crashing the agglomeration materials and is safe and reliable for a long time operation
2. The screen machine can be placed a maximum eight layers tests sieves (including the bottom sieve), can separate the material into 2 to 7 grade at the same time
3. The products can be automatic shut down according to the electric time controller and accurate judgement of the online product quality
4. These machines are suitable for both wet and dry sieving, and meet all ergonomic requirements for a modern laboratory
5. Free adjustment of all process parameters (time, amplitude)

Product Application

For each test room, laboratory, screening, and other inspection department of granular and powdery material particle structure, liquid solids and debris in the precise amount of screening, filtering, detection. The series has the advantages of low noise, standard test , sieve filter, high precision, wide used in metallurgy, powder, chemical, medicine, building materials, geology, defense and other departments of the scientific research and production, laboratory, quality inspection room.

Technical Parameters

FAQ

1. How about the sealing of this machine ?
Between two decks, there are silica gel ring to seal. Then the clamp would lock two decks tightly with the extended copper nut.

2. Could this machine be refitted or designed to suit to my production line ?
All of machines in our company could be customized by clients' specific requirement such as the height from outlet to ground, the inlet shape, the outlet shape and the gate design on first deck.

3. How can I get the matched spares for maintaining ?
The matched spares such as seal ring, bouncing ball, screen surface, clamp screws and nut could be ordered one set or more as customers' need.
