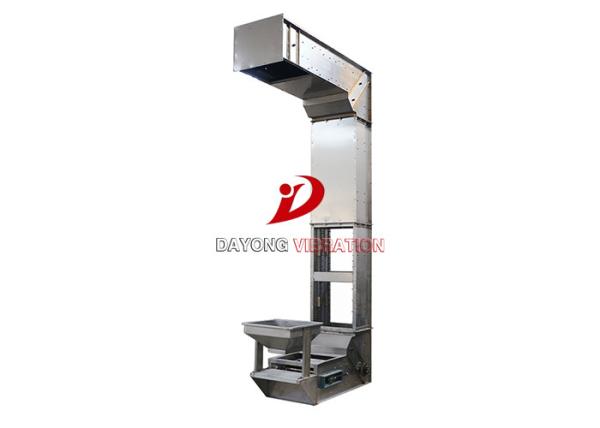

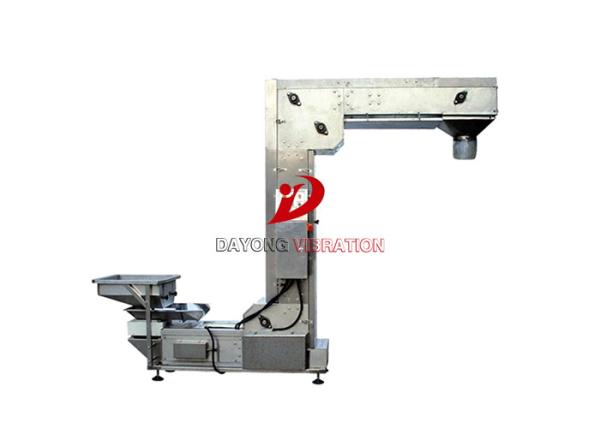

Carbon Steel Large Handling Capacity Bucket Elevator Conveyor For Silo

Working Principle

Belt bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators, dustpan, dustpanbelt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

Main Features

1. Bucket elevator has less requirement on materials, features and the bulk. It can lift, the powder, granular and bulk materials.
2. The max lifting capacity is 4,600m3/h.
3. Bucket elevator adopts inflow feeding, gravity induced discharge, and use large capacity hopper.
4. Drive A variety of drive combinations are used. The drive platform is equipped with a maintenance frame and a railing, and the drive device is divided into two types: left and right.
5. Upper unit A rail (double-row chain), backstop, and discharge pockets are fitted with anti-return rubber sheets.
6. The middle section of the middle section is equipped with rails to prevent the chain from swinging during operation.
7. Lower unit An automatic tensioner is installed.
8. The traction parts adopt wear-resistant chains and steel wire belt to extend the service life of the traction parts.
9. Bucket elevator runs smoothly, generally the lifting height is 40m or even higher.

Application

1. Chemical industry: resin, pigment, cosmetic, coatings, medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.
4. Medicinal industry: all kinds of medicine.
5. Recycle: disposed oil, disposed water, disposed dye waste water, active carbon.
6. Pharmaceutical industry.

Technical data

How to choose bucket elevator for you? Tell us the followings please:
1. What's material will be transported by bucket elevator? And the density of material? also the temperature of material? and its size.
2. How high is bucket elevator you need?
3. How much about the capacity of bucket elevator you need? 10t/h, 50t/h?
If there's anything I can do for you, Don't hesitate send us an inquiry now.

Attention1:
This is a customizable machine, which can be manufactured by customers' specific requirements.

Attention2:
The bucket elevator also be called as other name in different country, for example, sometimes will also named it as Belt bucket elevator; Ring chain bucket elevator and so on.
