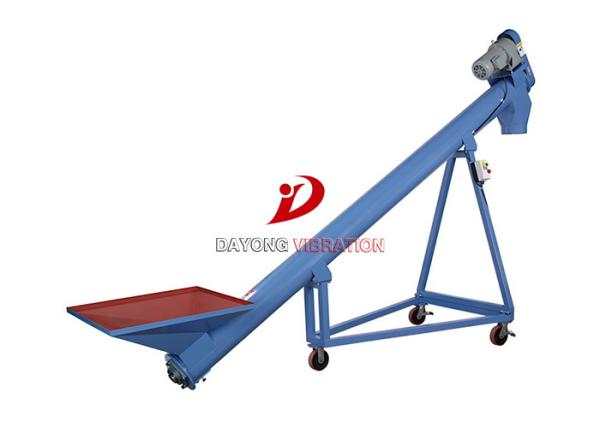

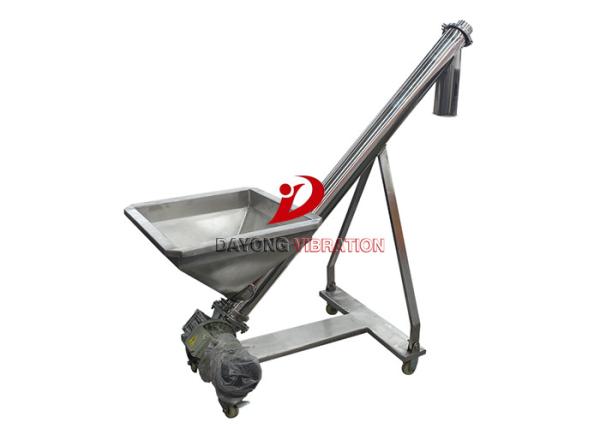

High Efficiency Flexible Screw Conveyor For Grain / Food / Chemical Transmission

Working Principle

The screw conveyor is a mechanism that uses a rotating helical screw blade, usually within a tube, to move liquid or granular materials. The bicephalous bearing has been installed outside the shell. The hanger bearing is a rolling and sheave interconverted structure with a dust-proof sealed appliance, the sealed material is nylon plastic which can give a better seal effect and enduring performance. Cleaning device is installed beside the discharge port. Low noise, agility adaption, easy handling and maintainance, flexible work location.

Main Features

1. Dust free operation: The flexible screw conveyor is totally sealed during operation and no air is used as conveying medium.
2. Easy to clean: The conveying system can be easily dismantled for cleaning.
3. Small foot print: The conveying soft tube takes up little or no floor space within your facility.
4. Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy.
5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
6. Low noise and power consumption.

Using Scope

Rotary conveyors are used in many industries, such as building materials, chemical engineering, coal, grain, oil, and feed. Suitable for horizontal or inclined conveyor powder, non-scale and small particle block materials, such as grain, Ding, coal, flour, cement, fertilizer and so on. It does not convey materials that are prone to deterioration, viscosity, and agglomeration; the ambient temperature is -20 to 50 ° C, and the temperature of the conveying material is ≤ 200 ° C.

1. Applicable industries: building materials, chemical, electricity, metallurgy, coal, grain, etc.
2. Applicable materials: coal, coal ash, residue, concrete, wheat, corn, rice, etc.

Technical Parameters

Attention1:
This screw conveyor is a customizable machine. We can design and manufacture a screw conveyor according to customers' specific requirements.

Attention2:
The screw conveyor also be called as other name in different country, for example, sometimes will also named it as pipe screw conveyor; auger conveyor; Trough Shaped Screw conveyor; screw feeder; U-type Screw Conveyor and so on.
