Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment
Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment
Specifications
Brand Name :
DAYONG
Model Number :
LS-159
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
15-20 DAYS
Packaging Details :
PLYWOOD CASE PACKING
Material :
Carbon steel / Stainless steel
Structure :
Screw conveyor system
Material Feature :
Heat Resistant
Voltage :
380V 50HZ 3P
Application :
Industrial conveyor
Warranty :
18 months
Description

Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment

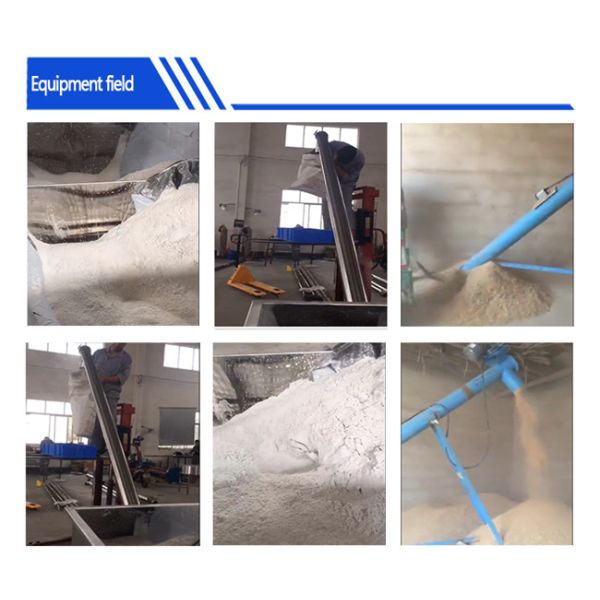

Screw conveyor is used in many industries, such as building materials, chemical engineering, coal, grain and oil, fodder. It is suitable for horizontal or inclined conveyor powdery, granulous and small block material, such as grain, dinas, coal, flour, cement, chemical fertilizer and so on. It cant convey material which is easy to metamorphic, sticky, agglomeration; Using temperature of environment is -20~50℃,conveying material temperature is ≤200℃.

Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment

Features:

1. Adopt high-quality steel pipe with good integral rigidity.
2. Adopt double-pitch paddles, which decrease the compression degree of material when being transported, and avoid blocking.
3. Adopt high-quality reducer with heavy-duty design, large torque and low noise.
4. Adopt optional universal ball joint, which facilitates installation, adjustment and steering.
5. Inlet equipped with high quality middle-hoisting bearing and tail bearing.
6. Sufficient spare parts with complete specification.
7. Large stock for common diameter of 165,219,273, 323 and 407, and dimension & angle can be customized according to your requirement.
8. Assembled by standard parts and components, which makes it convenient for transportation.

Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment

Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment

Model Screw diameter Rotation speed Output Maximum length Angle of inclination Power
L≤7m L>7m
(mm) (r/min) (t/h) (m) (degree) (kw)
LS160 163 308 1-20 10 0°~60° 5.5 7.5
LS200 185 260 5-40 15 7.5 11
LS250 237 200 8-60 20 11 15
LS300 285 170 10-90 20 18.5 22
LS400 362 170 20-120 25 18.5 22

Industrial Flexible Screw Conveyor Cement Tube Screw Conveyor Equipment
