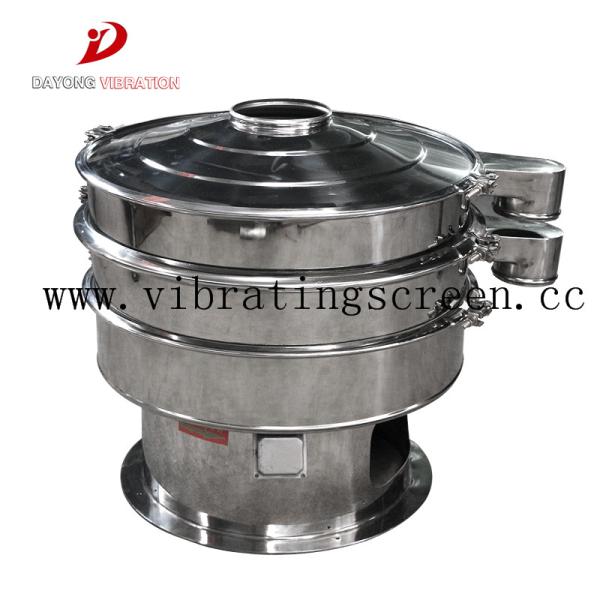

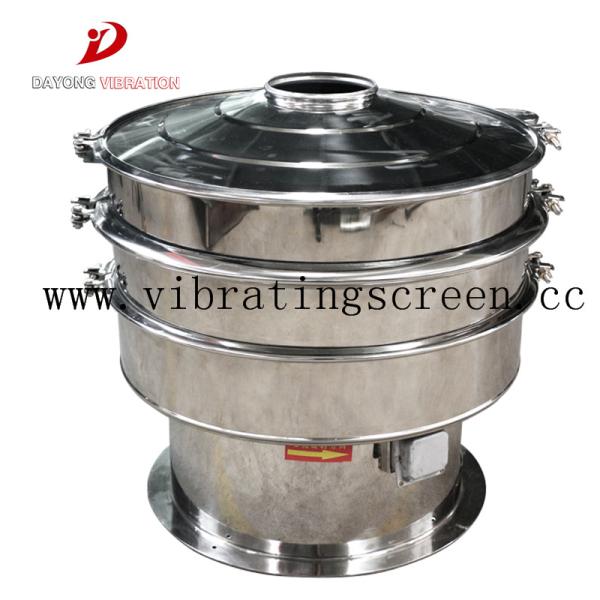

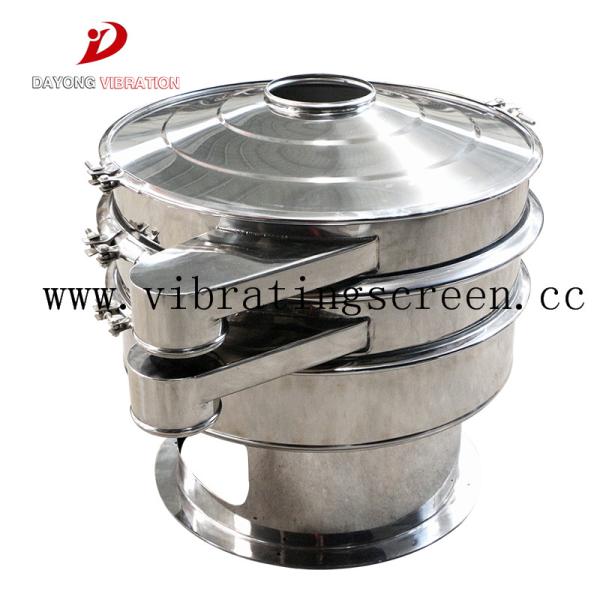

Food Grade Circular Motion Vibrating Screen , Rotary Stainless Steel Vibro Sieve

Product working principle:

Rotary Vibro Sieve is a vertical motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source. The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be change by adjusting the phase angle on both top and bottom parts.

Product main features:

1. High efficiency,design is exquisite and durable.
2. Easy to replace the screen, easy yo operate and easy cleaning it.
3. Mesh will not blocking , it can screening to 500 mesh or 0.028mm.
4. Impurities coarse waste can put out automatically, can continuous working.
5. Small volume and easy to operate.
6. Low noise, less than 60 decibels.
7. Sieve machine up to five layers, recommend the use of three layers.

Technical Parameters:

Using Scope:

1. Food industry: starch powder, sugar powder, sale, rice flour, milk powder, soybean mile, sauce, fruit juice, condiment, and so on.
2. Chemical industry: resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
3. Metallurgy industry: aluminum powder, lead powder, copper powder, alloy metal powder.
4. Pollution abatement: waste oil, sewage, accessory ingredient, activated carbon.

5. Pharmaceutical industry:Pharmaceutical intermediates, medical auxiliary materials.
6. Ceramic abrasive metallurgy industry: Aluminum silver pulp, mud, quartz sand, alumina, artificial black aluminum.

FAQ:

Q: How do your after-sale service work if the product got damaged?
A: In warranty 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.)
Q: What's the production capacity you want?
A: Could customized according to tons or cubic meters per hour.
