Automatic Food Grade Linear Vibratory Screening Equipment With Stainless Steel

Product Working Principle

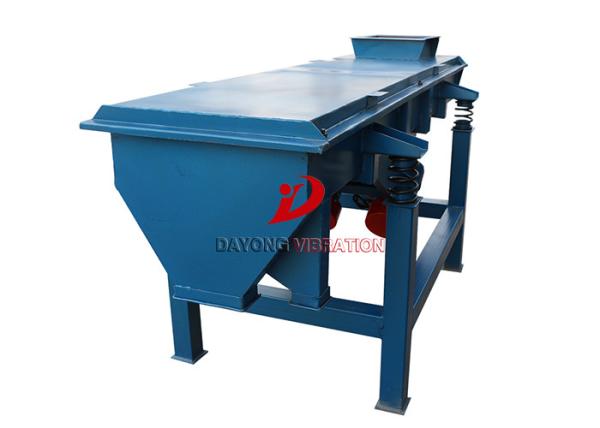

DZSF series linear vibrating screen uses the vibration motor installed at the bottom of it as vibration source. When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials enter into the feed port, go through the multi-layer screen, then different size of materials was separated out from different outlet.

Technical Parameters

Main Features
1. The screening precision is great, while the blocking rate of screen is less than 10% in average.
2. The screen frame is usually made of wood, or steel or stainless steel. If the mesh diameter is large than 2mm, and the production capacity is high, the stainless steel frame will be better.
3. Enclosed structure is adopted for the linear vibrating screen to avoid particulate matter pollution to the air.
4. The low energy consumption and low noise (73-80dB) make the machine quite eco-friendly.
5. The screen is woven by stainless steel wire, so its service life is quite long and the maintenance is simple. It can be used in single layer for multi-layer (7 layers at most).
6. The motor could be mounted at the bottom or on the side of the vibrating body.

Using Scope
The linear vibrating screens are used in many industries, such as, steel making, mining, quarrying, foundries, food processing and chemical industry for the separating of bulk materials like stone aggregates, different kind of sand, active carbon and other materials.
