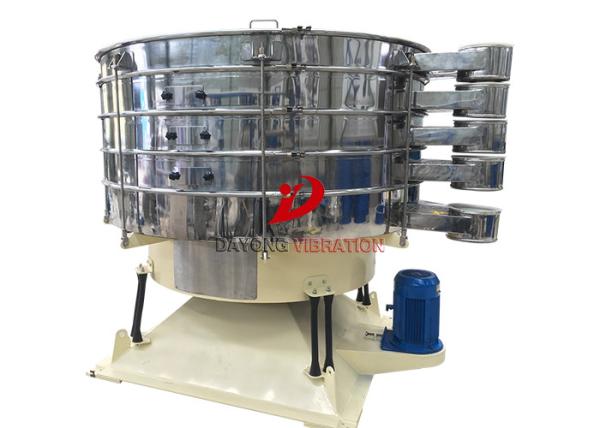

High Precision Starch Tumbler Sieve Large Output Swing Sieve 360 Degree

Product Introduction:

1. This tumbler separator can be manufactured as customers' need because of some high precision sieving.

2. The tumbler separator also be called as other name in different country, for example, sometimes will also named it as rocking sieve; tumbler screen; tumbler screener and so on.

Working Principle:

When you start the machine,the vibrating part - the screen box takes circling motion under the influence of the vibrating force.The screen box drive the sieve to take circling motion periodicity,so the material on screen surface take bounce motion,meanwhile,the material less than the aperture drop to the next deck,and the oversize are discharged by the outlet. Finally, the screening work is completed. From the aspect of its structure and working principle, the exciter can circumgyrate in two ways according to the motion of the material, uniformily or contrarily. As a result, we'd better make a choice between throughput and efficiency according to our practical demand.

Mainn Features:

It is used to sieve fine and super fine powder.
1. High Efficiency, the machine can imitate effectively manual screening motion and process, the raw material present a spiral involutes’ motion, the raw material and mesh screen happen to close contact, the accuracy of screening can up to 90-95%.
2. Protecting raw material, gentle tumbling screening can not damage the physical structure of raw material, not easy to produce static electricity, it will be the best choice for sieving flammable and explosive material.
3. Life is long, because the accelerated speed in vertical direction is very small and soft tumbling screening, so the mesh screen is not easy to be damaged and it extend the useful life for mesh screen and other parts.
4. Clean, bouncing ball can clean the surface of screen, to keep sanitary, ensure the continuity of screening; fully enclosed operation and more environmentally friendly.
5. Easy disassembly, circular modular construction, it is very simple to install and dismantle; besides, the outlet port can be adjustable to any direction at 360 degree.
6. Low noise, the noise is low to 75dBa.
7. It is widely applied to micro powder, metal powder, plastic powder, additive, milk powder, soybean milk powder, spices, citric acid, protein powder, paint powder and so on.

Using Scope:

Swing vibrating screen can sieve material that easily damaged or out of shape, such as ball, cylinder, and piece shape material.It is widely used in different fields, such as chemical industry, abrasive material and ceramic industry, food industry, paper-making industry, metallurgy and mining industry, machanical industry, etc.
1. Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.
2. Abrasive material and ceramic industry: building sand, mica, alumina, antimony ore, silica sand, abrasive, refractory material, slurry, etc.
3. Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4. Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
6. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, aluminum powder, electromagnetic material and metal powder, etc.
