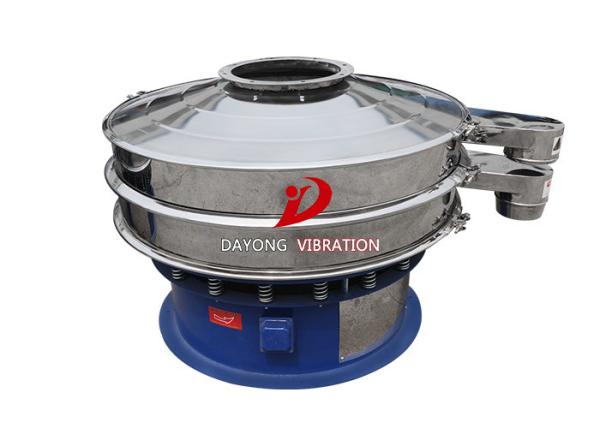

Single Deck 600 Diameter Rotary Vibrating Screen Machine

Working Principle

The three-dimensional vibrating screen is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three dimensional movement. The vibrating screen has the advantages of long track of material running and high utilization of screen surface. Adjusting the phase angle of the upper and lower ends of the hammer can change the movement track of the material on the screen surface. The material can be finely sieved and probability sieved.

Technical Parameters

Main Features

1. Small size, light weight, convenient movement, the direction of the discharge port can be adjusted arbitrarily, coarse and fine materials are automatically discharged, and can be automated or manually operated.
2. High screening precision and high efficiency, any powder, granule and mucilage can be used.
3. The screen is not blocked, the powder is not flying, and the finest screening can reach 500 mesh (28 microns) and the finest filtration can reach 5 microns.
4. Unique grid design (female and child type), long-term use of screen, convenient screen change, only 3-5 minutes, easy to operate and clean.
5. No mechanical action, easy maintenance, single or multi-layer use, and contact with materials are made of stainless steel (except for medical use).

Using Scope

Rotary Vibration Sieve for round vibrating screen are widly used in many industries as below:
1. Chemical industry: resin, paint, industrial drugs, cosmetics, paint, herbal powder and so on.
2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, etc.
3. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, alloy powder, electrolytic copper powder, quartz sand, etc.
5. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.
