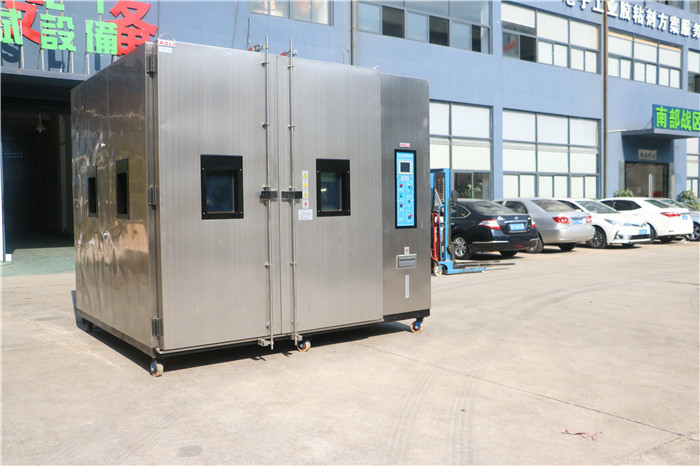

Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Walk in Environmental Temperature Humidity Test Chamber
Specifications
Brand Name :
ASLI
Model Number :
THR-Volume
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per quater
Delivery Time :
30 workdays
Packaging Details :
strongly export plywood case
internal dimension :
custom size
function :
Temperature Humidity Test
temperature range :
-70~150C
humidity range :
20~98%R.H.
Sample shelf :
optional
Uniformity of Temperature :
+/-2.5C
heating speed :
3.0°C/min
cooling speed :
1.0°C/min
application :
auto parts
control method :

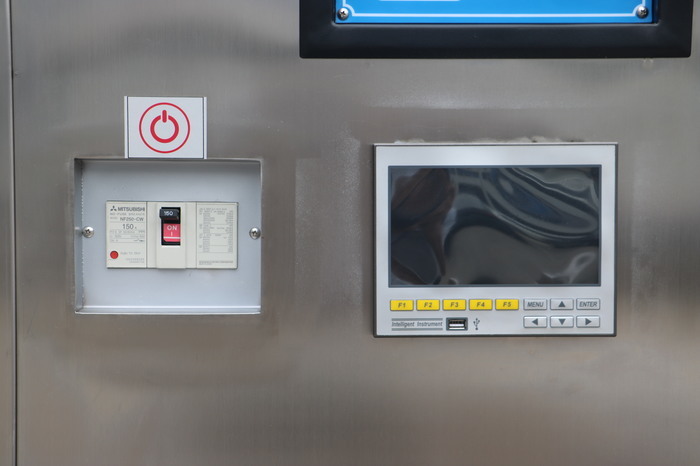

Programmable LCD touch screen controller
Description

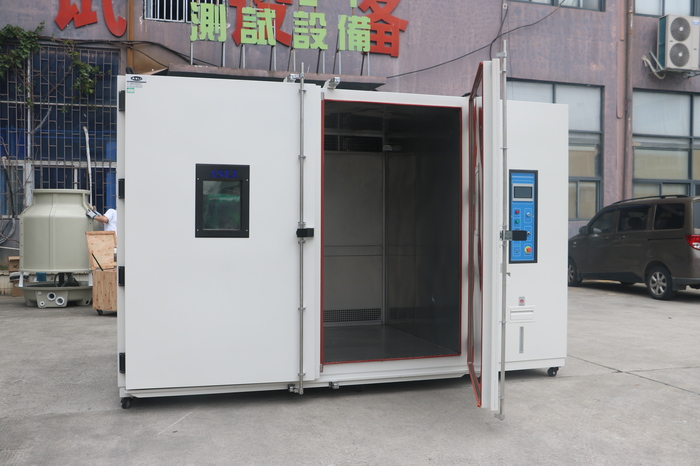

Walk in Environmental Temperature Humidity Test Chamber
walk-in temperature humidity test chamber is a large environmental chamber used to simulate a wide range of temperature and humidity conditions for testing various products, materials, and components. The function of a walk-in chamber is to create and maintain a controlled environment where the test specimens can be subjected to extreme temperature and humidity conditions to evaluate their performance, durability, and reliability.

Walk-in chambers are used for a variety of testing applications, including product development, quality control, and regulatory compliance testing. These chambers typically feature a large interior space that can accommodate a range of test specimens, from small electronic components to large automotive parts and even entire vehicles.

The temperature and humidity levels in a walk-in chamber can be precisely controlled and programmed to simulate various environmental conditions, such as tropical climates, arctic conditions, or desert environments. The test specimens can be exposed to these extreme conditions for extended periods of time, allowing for accelerated aging and performance testing.

Walk-in chambers are commonly used in industries such as aerospace, automotive, electronics, and pharmaceuticals to test the performance of their products under extreme conditions. By subjecting their products to realistic environmental conditions in a controlled setting, manufacturers can identify potential design flaws or weaknesses that could lead to product failure and improve the quality and reliability of their products.
FEATURES AT A GLANCE
Inner material: SGS tested SUS#304 stainless steel ,
internal dimension can be customized Tato controller, LCD touch screen,
with Independent R &D software Teme. Range: -70~150/180C adjustable R232 or R485 communication Interface for remote control ISO 9001 certificated
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Walk in Environmental Temperature Humidity Test Chamber Technical Parameters
Model
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C
E:-60degree C F:-70degree C )
High Temperature 80degree C (80degree C ~200degree C is optional)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need
dehumidifier)
Indication Resolution/
Distribution Uniformity of
Temperature & Humidity
0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H.
Control Accuracy of
Temperature and Humidity
±0.5degree C ; ±2.5% R.H.
Temperature Rising/
Falling Velocity
Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( faster temperature change rate is optional)
Cooling System
Water cooled/ air cooling
Protection Devices
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories
Slope for cart , Recorder, Water Purifier, Dehumidifier
Compressor
French Tecumseh Brand, Germany Bizer Brand
Power
AC 380 V(±10%),50/60HZ ,3 phase 5 Lines
PRODUCT CONFIGURATION

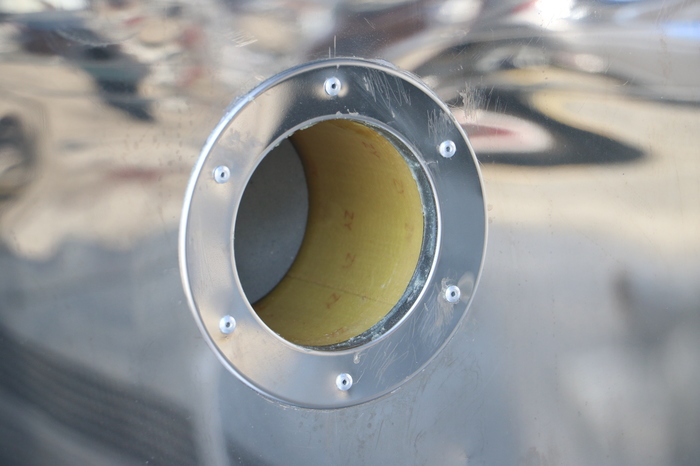

Test Hole
Recorder

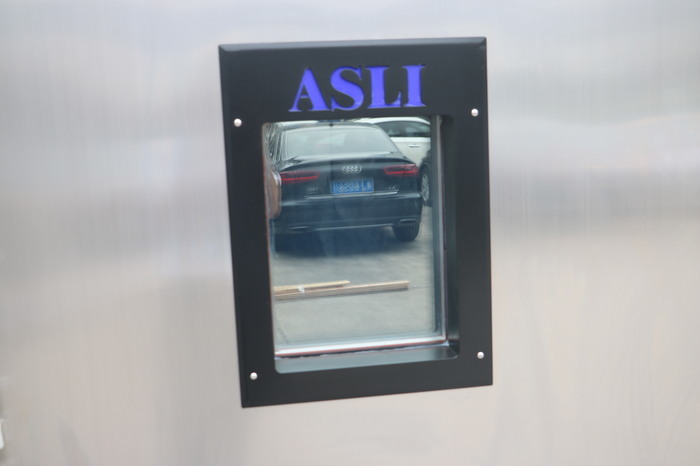

Three layers of explosion-proof glass
Exhibition:
Successful Project
Project in Thailand
Project in India
Project in Australia
SIMILAR PRODUCTS
FAQ
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Walk in Climatic Test Chamber Programmable Temperature And Humidity Chamber. Every machine from our factory has a 12 months product warranty. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.

5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
If you have any doubt or needs about Walk in Environmental Temperature Humidity Test Chamber, please don't hesitate to send your inquiry.
