Specifications
Brand Name :
ASLI
Model Number :
ES-30
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
40000 dollars per month
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
40 working days
Packaging Details :
Standard Export Poly Wood Case
Customized support :
OEM
meet standard :
ISTA
Power :
Electronic
Certificate :
ISO 9001:2008
application :
Packaging Product
Vibration :
vertical
Vibration Force :
Customized
Table Size :
Customized
Max Load :
750
Description

High Frequency Vibration Test Stand ES-30.pdf

ISTA Transport Simulation High Frequency Type Vibration Tester for Packaging Product

Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test. Electromagnetic vibration tester completely according to the standard of battery related testing design, simulation under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion. Vibration test of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.

Specification

High Frequency Type Vibration Tester for Packaging Product Parameters:
Maximum sine excitation force 3000Kg.f peak
The biggest random vibration force 3000Kg.f r.ms
The biggest shock vibration force 6000Kg.f peak
Frequency Range DC~4000 Hz
Maximum displacement 75mm p-p(peak-to-peak value)
Maximum speed 1.8m/s
Maximum acceleration 100G(980 m/s2)
First resonant frequency 3500Hz
Maximum load 750kg

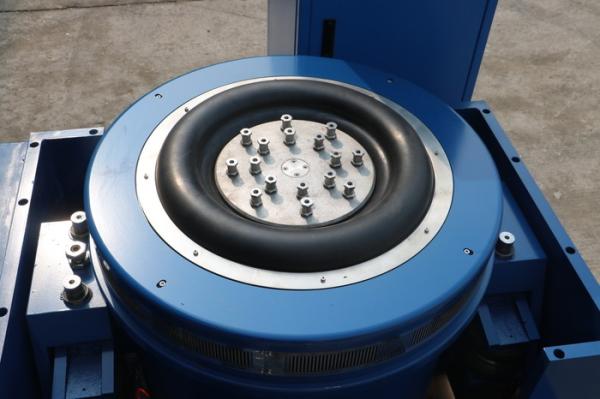

Moving coil diameter (working mesa diameter) Diameter of 450 mm
The quality of moving coil 40kg
Maximum load 750Kg
Mesa of screw 13 x M8
Magnetic flux leakage <10gauss
Dimension 800mm x 800mm x 800mm(Vertical machine)
Weight About 1500Kg
The Servo System
Function Temperature, air pressure, displacement, over voltage, over current, input under-voltage, external fault, control power supply, logic, lack of equal input.
Digital Vibration Controller
Hardware configuration 2 Channel Input,1 Channel Input
Control computer Original lenovo computers,liquid crystal display(With the keyboard/optical mouse)
Software Chinese/English operation, the time domain and frequency domain analysis, signal source, sine sweep frequency analysis, etc. WORD can automatically generate test reports, signals and data display, storage, set up the test parameters and the analysis of the function.
Operating system Windows 2000/ XP
Acceleration sensor B&W

frequency domain:1—2000Hz

sensitivity:50mv/g

temperature range:-24 - 250℃
Electrical Requirement
Electrical source 3 phase,380V/50Hz

Main Features
* An air-cooled electro-dynamic shaker
* Vibration controller and power amplifier structured into all-in-one cabinet
* Achieving 2400 newton’s peak sine thrust.
* X,Y, Z 3 Axis Testing

Control Functions
* Fixed-frequency sinusoidal vibration
* Swept vibration * Random vibration
* Classical shock

Typical system applications
* Environmental test
* Stress screen test
* Vibration Testing

User Benefits
* Easy installation can be done by user

* User interface: lcd touch screen for local mode and pc-windows (thru ethernet) for remote

mode;
* Local mode: quick start a pre-defined test, dozens of test specifications can be stored;
* Remote mode: all operations of the system, including test defining and store the test specifications onto mostar, test control, test data review and documentation.
