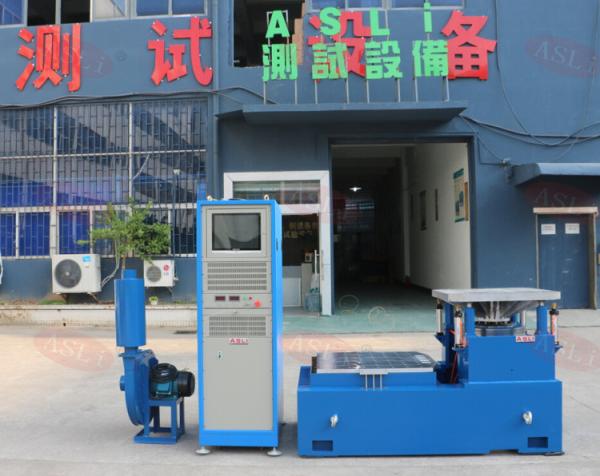

ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
Specifications
Brand Name :
ASLI
Model Number :
ES-6
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 20000~50000
Payment Terms :
T/T, D/A, D/P, T/T
Supply Ability :
30 set per month
Delivery Time :
30-35 work days after deposit
Packaging Details :
PP film + Poly wooden box
sine force :
60000N
speed :
1.8m/s
displacement :
51mm
frequency :
3~2000HZ
loading :
300kg
Acceleration :
100g
armature :
230mm
application :
Automotive
vibration direction :
3 axis
Description

ES-6 vibration test equipment.pdf

ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing

Automotive Vibration Testing Standards IEC 60068 Universal Electrodynamic Vibration Shaker Table are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the disribution or in-use environment. The machine are simple to use can perform a wide range of vibration test in accordance with government,industry and corporated specifications.

ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing

1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console

2. To make it convenient for operation; original refrigerating compressor unit and its main accessories imported from abroad

3. Imported LCD color touch screen controller capable of automobile control of temperature humidity programs;

4. With R232 Telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool

5.Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration

reliability test equipment , shock vibration

System Specification
System Model: ES- 6
Frequency Range: 3~3500
Rated Force Sine N 6000
Random N 12000
Shock N 12000
Maximum Acc. sine (m/s2) 1000
Random (m/s2 rms) 1000
Shock(m/s2) 2000
Maximum Vel. sine (m/s2) 1.6
Shock(m/s2) 1.6
Maximum Disp. Maximum Travel
mm (p-p)		 51
Moving Coil 6.5kgs
Dimension of moving coil Dia 230mm
Max Load: 180kgs
Name high frequency vibration shaker
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s2) Rated Speed(m/s) Rated displacement (p-p)mm Max. Loading (Kg) moving coil (Kg) Dimension of Moving coil (mm)
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450

ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing
ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing

ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing

ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing

Any doubt or needs about ISO Certificated Factory Mechanical Shock High Frequency Vibratory Shaker for Automotive Vibration Testing,please don't hesitate to send your inquiry.
