Specifications
Brand Name :
ASLI
Model Number :
ES-20
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 20000~60000
Payment Terms :
T/T,
Supply Ability :
30 set per month
Delivery Time :
40 work days after deposit
Packaging Details :
export standard plywood case
sine force :
20000N
speed :
1.8 m/s
displacement :
65mm
frequency :
3~3500HZ
loading :
600kg
Acceleration :
100g
armature :
450mm
Brand :
ASLI
Table Size :
800x800mm
application :
lab
function :
Sine and Random
Description

Sine and Random Electromagnetic Frequency Vibration Tester for Lab Equipment Test

vibration test equipment ES-20.pdf

why is vibration test necessary

Not hard to understand Vibration may influence the durability and reliability of machinery systems or structures and cause problems such as damage, abnormal stopping, and catastrophic failures. Vibration measurement is an important countermeasure to prevent these problems from occurring

Sine And Random Electromagnetic Frequency Vibration Tester For Lab Equipment Test

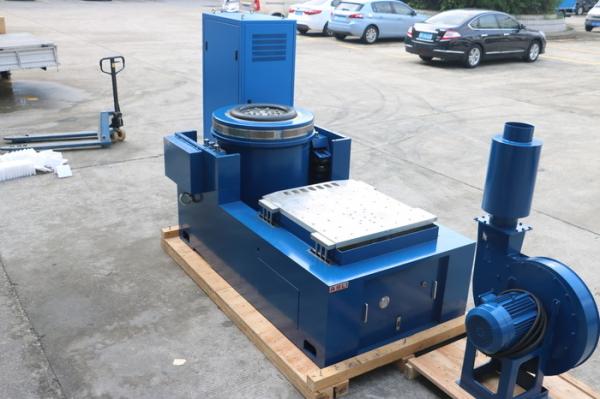

Test system composition

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.

Specification

Name Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s2) Rated Speed(m/s) Rated displacement (p-p)mm Max. Loading (Kg) moving coil (Kg) Dimension of Moving coil (mm)
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450

Sine And Random Electromagnetic Frequency Vibration Tester For Lab Equipment Test

Sine And Random Electromagnetic Frequency Vibration Tester For Lab Equipment Test

Sine And Random Electromagnetic Frequency Vibration Tester For Lab Equipment Test

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

Sine And Random Electromagnetic Frequency Vibration Tester For Lab Equipment Test

Sine And Random Electromagnetic Frequency Vibration Tester For Lab Equipment Test

If you have any doubt or needs about Sine and Random Electromagnetic Frequency Vibration Tester for Lab Equipment Test, please feel free to contact us.
