2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
2m/S 4000Hz High Frequency Vibration Shaker For Industry
Specifications
Brand Name :
ASLI
Model Number :
ES-3
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
40000 dollars per set
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Standard Export Poly Wood Case
Customized support :
OEM
Brand :
ASLI
Power :
Electronic
Certificate :
ISO 9001:2008
Packing Material :
Poly wood case
Vibration :
3 Axis
Vibration Force :
Customized
Table Size :
Customized
Max Load :
100Kg
Description

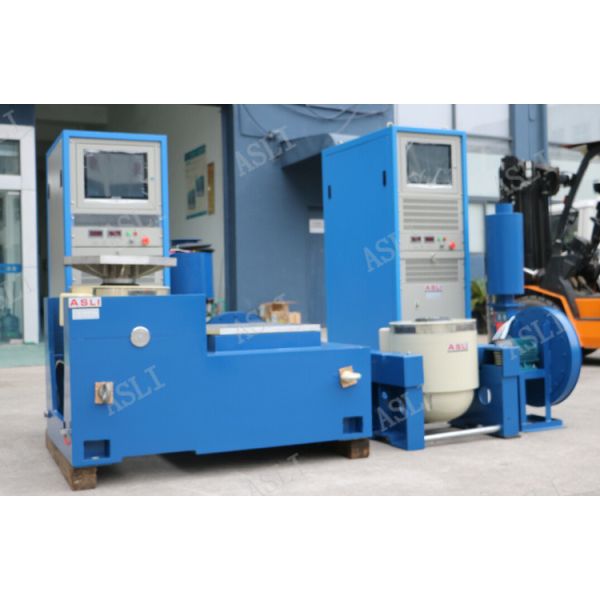

High frequency vibration Shaker Table Test Equipment

Description:

High frequency vibration Shaker Table Equipment is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test

Features:

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

Technical Parameters:

Model ES-3
Rated sine excitation force 3000N
Rated random excitation force 3000N
Shock excitation force 6000N
Frequency range 5-4,000Hz
Max. displacement 25mm
Rated speed 2m/s
Rated acceleration 500m/s2
First-order resonant frequency 2,900 Hz±5%
Max. loading 100kg
Vibration frequency 3 Hz
Working table diameter Φ150mm
Equivalent weight of moving parts 2kg
Dimension 764×530×660mm
Weight About 480kg
Cooling method Forced air cooling

2m/S 4000Hz High Frequency Vibration Shaker For Industry

2m/S 4000Hz High Frequency Vibration Shaker For Industry

2m/S 4000Hz High Frequency Vibration Shaker For Industry
