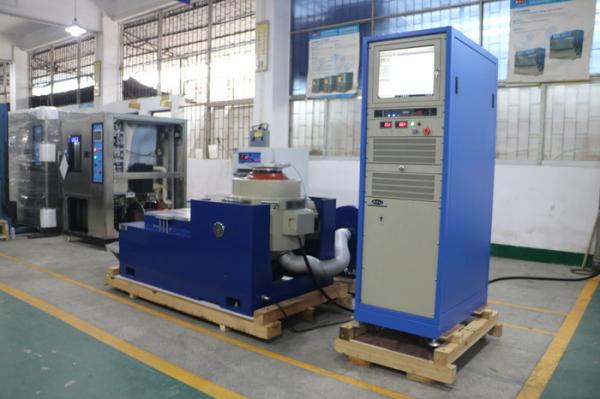

6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
Specifications
Brand Name :
ASLI
Model Number :
ES-6
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
30~45 days
Packaging Details :
strongly wooden case
Slip Table :
600*600mm
vibration direction :
3 axis
vibration force :
6KN
Test Standard :
IEC62133
vibration mode :
Sine Sweep Random
moving coil :
12kg
control method :
Digital Controller
acceleration :
100g
Description


High Acceleration Sine Sweep Random Vibration Test Machine with Digital Controller


Vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD,DIN,ISO,ASTM,IEC,ISTA,GB,GJB,JIB,BS, etc.)to provide technical support for establishing product quality inspection.


Ttechnical Parameters:

Model

Rated Sine
Force (N)

Rated Random
Force (N)

Frequency
Range (Hz)

Rated Acceleration (m/s2)Rated Speed(m/s)

Rated displacement
(p-p)mm

Max. Loading (Kg)moving coil(Kg)

Dimension of

Moving coil(mm)

ES-3300030003-350010001.6251003.5Φ150
ES-3a300030003-35004001.6401209Φ230
ES-6600060003-350010001.6251806.5Φ230
ES-6a600060003-350010001.65125012Φ230
ES-1010000100003-300010001.85127014Φ240
ES-2020000200003-300010001.85130030Φ320
ES-3030000300003-280010001.85l45040Φ450
ES-4040000400003-280010001.85150050Φ450
ES-5050000500003-270010001.85175050Φ450
ES-6060000600003-270010001.85175060Φ450
ES-1001000001000003-250010001.851100090Φ450
ES-1201200001200003-220010001.851110090Φ500
ES-1601600001600003-210010001.8511500150Φ600
ES-2002000002000003-200010001.8512500200Φ650
ES-3503500003500003-170010001.8514500300Φ870



6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine

Vibration Test Machine Features:

1. Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control systems, the data of the whole process can be handing and output.
2. Display functions: dynamic display test curves, multi-Dan, on the number of data.
3. Curve recorder:real-time record of the test data, test data automatically, the test results can be stored, printed.


technical parameters of horizontal expander:

ModelBench Size (mm)Frequency Range (Hz)Weight of Moving Parts (kg)
LT0303300×300×22
300×300×26
300×300×30		5-1000
5-1500
5-2000		6.6
7.8
9.0
LT0404400×400×22
400×400×26
400×400×30		5-l000
5-1400
5-2000		11.2
13.2
16.0
LT0505500×500×25
500×500×30
500×500×35		5-1000
5-1500
5-2000		19.3
23.1
27.0
LT0606600×600×25
600×600×30
600×600×40		5-1000
5-1200
5-2000		27.5
33.0
45
LT0707700×700×25
700×700×30
700×700×35		5-800
5-1000
5-1500		36.8
44.2
52


6KN Random Vibration Testing Equipment , IEC62133 Sine Sweep Vibration Test Machine
Electrodynamics Vibration Shaker can be completed in X,Y,Z 3-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

If you need more information about High Acceleration Sine Sweep Random Vibration Test Machine with Digital Controller, please don't hesitate to contact us.
