Specifications
Brand Name :
ASLI
Model Number :
ES-80
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
40000 dollars per month
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
40 working days
Packaging Details :
Standard Export Poly Wood Case
Customized support :
OEM
Brand :
ASLI
Power :
Electronic
Certificate :
ISO 9001:2008
Packing Material :
Poly wood case
Vibration :
3 Axis
Vibration Force :
Customized
Table Size :
Customized
Max Load :
800
Description

80KN MIL-STD-810 Vibration Testing overview Method 514.6 IS0 17025 Accredited Lab Testing for New Energy Battery Testing

PRODUCT DESCRIPTION

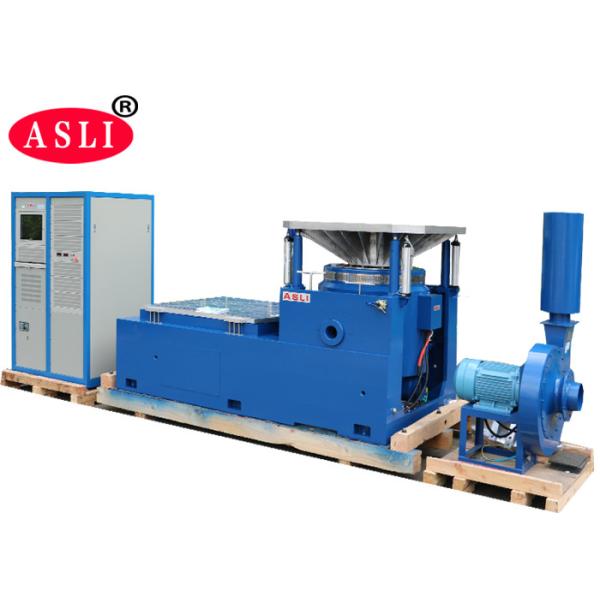

Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.

TECHNICAL PARAMETERS OF VIBRATION SYSTEM

Item Description

Force

(Maximum)

 Sine 800Kg.f peak
Random 800Kg.f r.ms
Shock 1600Kg.f peak
Frequency Range 5~2000 Hz
Max. Displacement (Peak to Peak) 100mm
Max. Velocity 2.0m/s
Max. Acceleration 100G (980 m/s2) without loading
Vibration direction Vertical and horizontal
Armature Diameter 450 mm
Effective Armature Mass 6kg
Table screw 17×M10
Max. payload 1000kg
Magnetic Leakage <10gauss
Axial Vibration Isolation Frequency 2.5HZ
Allowable eccentric moment >300N.m
Dimension 1200mm*790mm*840mm (Head Expander is excluded)
Weight 1600kg (Slip Table is excluded)
Power supply AC 3-phase 380V/50Hz,18 KVA
Grounding resistance ≤4Ω
Air compressor 0.4-0.6Mpa (provided by customer)
Cooling method Air cooling
