1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40
Specifications
Brand Name :
ASLI
Model Number :
ES-10
Certification :
CE, ISO,SGS, BV
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
50 workdays
Packaging Details :
export wooden case
application :
laboratory and industrial
vibration force :
1000kg.f
Speed :
1.8m/s
acceleration :
100g
vibration direction :
vertical+horizontal vibration
dimension of Moving coil(mm) :
dia. 240mm
test standard :
IEC 60335-2-24 And IEC 60335-2-40
Description

Download document for storage -- click here ----→vibration test equipment ES-10.pdf

1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40

high frequency vibration test machine is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test

1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40 Features:

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40

Vibration Test Machine Technical Parameters:

Model
Rated Sine Force (N)
Rated Random
Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil (Kg)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450

Random Vibration Test Equipment Features:

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.

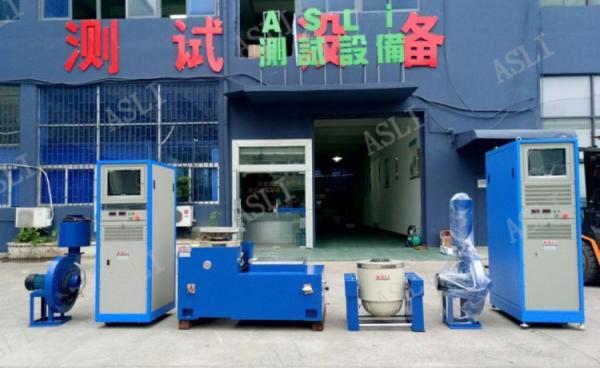

Pictures for reference:

1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40

Packing Detail:

1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40

If you need more information about 1000kg.f Force Random Vibration Test Equipment For IEC 60335-2-24 And IEC 60335-2-40, please feel free to send your inquiries.
