Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products
Specifications
Brand Name :
ASLI
Model Number :
ES-10
Certification :
CE, ISO, SGS, BV
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 set per quarter
Delivery Time :
40 workdays
Packaging Details :
wooden case
sine force :
10000N
vibration direction :
Triaxial
acceleration :
100g
test standard :
MIL STD 810G
Displacement :
Sine And Random Large Displacement
moving coling :
14kg
application :
Electronic Products
usage :
vibration test
Description

What is Vibration Testing?

Vibration testing and data promotes a better understanding of machine health, efficiency and better productivity, estimates & operating schedules. By compiling and collating data of any machine’s lifetime of wear and stress into a short period of time, vibration testing helps by providing insights to the working status and condition of machines, structures and even products.

Download document for storage -- click here ----→ES-10 mechanical vibration test system.pdf

Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

electromagnetic vibration testing system is specially designed to meet the need for long time operation, installation of vibration resistant base can achieve vertical and horizontal vibration. The standard platform is installed with high efficiency airbag shock isolation device so that the vibration transmitted to the building can be minimized, at the sane time avoid the need of additional foundation in most of the cases.

A complete set of vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD,DIN,ISO,ASTM,IEC,ISTA,GB,GJB,JIB,BS, etc.)to provide technical support for establishing product quality inspection.

Product Description
Vibration Test Equipment Supplier Parameter:
Model
Rated Sine
Force (N)
Rated Random Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil(Kg)
Dimension of Moving coil (mm)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
Technical Parameters of Vertical Expander
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

Technical Parameters of Horizontal Expander:
Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

high frequency shaker table Specifications

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

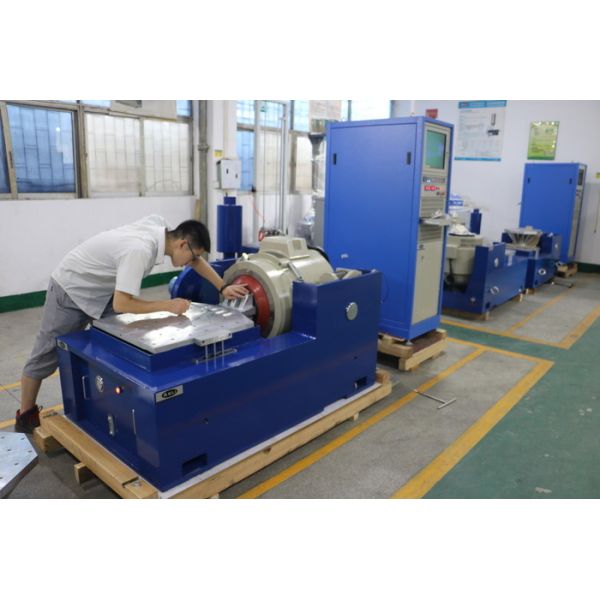

Pictures for reference:

Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

Exhibition:

Sine And Random Large Displacement Triaxial Electrodynamic Vibration Test System For Electronic Products

If you need more information about our machine, please don't hesitate to send your inquiry.
