Specifications
Brand Name :
LABTONE
Model Number :
DT030
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
30days
Packaging Details :
international wooden case
Supply Ability :
50 Sets / Month
Drop Height :
0-1200mm
Specimen Weight :
300kg
Specimen Dimension :
1200*1200*1200mm
Drop Method :
Face, edge, angel
Machine Dimension :
2100*1700*2800mm
Machine Weight :
4500kg
Supporting Facility :
Drop Controller
Height Display Modes :
Digital
Application :
Package Drop Test
Delivery Detail :
15-25 days
Description


Lab Drop Tester for Big Heavy Package Large - Scale Furniture With With IEC 68-2-27

Product Description

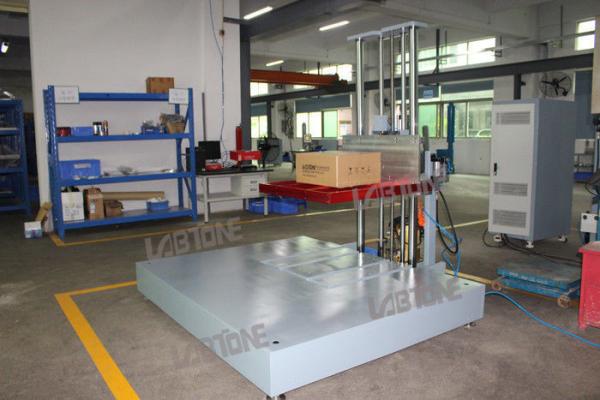

For the massive packing goods and the mass is large, the vertical drop height is relatively low in the transportation and handling. So the Standard Free DropTest Equipment for Heavy Packaged Cargo is relatively low. This drop tester is mainly used for larger package drop test. Zero height drop tester use a quickly moves down E fork mounting as bracket. The specimen place balance as the test requirment(plane, edge,angle). When doing the test, the bracket do high-speed downward movement before the specimen, acceleration >3g, it need guarantee the bracket separate with the specimen and realize free fall. The standard drop height range is 2.54cm-120cm.

.

Carton Drop Test Packaging Drop Test Machine With ISO2248 Standard​ Specification

Model DT015 DT020 DT030
Drop height(mm) 0----1200 0----1200 0---1200
Specimen weight(KG) 150 200 300
Specimen dimension(mm) 1000*1000*1000 1200*1200*1200 1200*1200*1200
Drop type Free drop
Machine dimension(mm) 1900*1700*2800 2100*1700*2800 2100*1700*2800
Machine Weight(kg) 2500 3200 4500
Power supply 3 phase AC380V 50HZ
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27


Detail Pictures

Lab Drop Tester for Big Heavy Package Large - Scale Furniture With With IEC 68-2-27
Lab Drop Tester for Big Heavy Package Large - Scale Furniture With With IEC 68-2-27
Lab Drop Tester for Big Heavy Package Large - Scale Furniture With With IEC 68-2-27


Functions and Features

1 With upper and lower displacement limit, safety and reliability;

2 Lifting height can be adjusted arbitrarily to meet the needs of different users;

3 Zero freely-drop test stand adopts the double-rail guiding device for stable and reliable lifting operation;

4 The freely-drop test stand can achieve the clamping fall tests for surface, edge and corners of specimen at different direction;

5 The machine is only needed to be placed on the flat marble or concrete ground for installation, without special foundation.

Labtone Service

Pre-sales service:
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service:
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service:
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable


Packaging

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
