Specifications
Brand Name :
LABTONE
Model Number :
YST500
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
T/T, L/C
Delivery Time :
30-35 Work Days
Packaging Details :
International Plywood Case
Price :
Negotiable
Supply Ability :
15 Sets / Month
Payload :
500kg
Table Size :
1200 x 1500
Frequency :
2~5Hz(120~300)RPM
Amplitude :
1 inch (25.4MM) fixed
Vibration Pattern :
Rotation, 30° unbalance vibration(asynchronous)
Power Supply :
AC 220V±10% 50Hz
Description

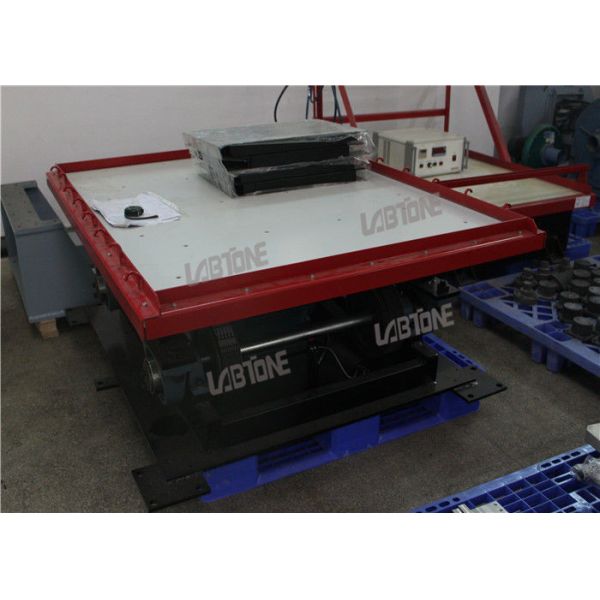

1200mm * 1500mm Table size Mechanical Vibration Shaker Table

Description and Application

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.


YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes


Specifications

ModelYST100YST200YST500YST1000YST2000

Max Payload(kg)

10020050010002000

Table Size(mm)

1000x12001200x12001200x15001500x15001500x1500

Frequency Range

2~5Hz(120~300)RPM

Displacement

 25.4mm Fixed

Test Motions

 Rotary (Synchronous)
Power SupplyAC220V±10% 50Hz3-phase 380V±10% 50Hz



Features

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.



Customer Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Operating mode
Energy Saving Mechanical Shaker Table 1200mm * 1500mm Table Size


Detailed Picture
Energy Saving Mechanical Shaker Table 1200mm * 1500mm Table SizeEnergy Saving Mechanical Shaker Table 1200mm * 1500mm Table Size
