Specifications
Brand Name :
LABTONE
Model Number :
EV206
Certification :
CE / ISO
Place of Origin :
Dongguang, China
MOQ :
1 Set
Payment Terms :
T/T, L/C
Delivery Time :
45 Working Days
Packaging Details :
Plywood Case with Vacuum Packing
Price :
Negotiable
Supply Ability :
15 Sets / Month
Sine Force :
600 kg
Max. Velocity :
200 cm/s
Maximum Displacement :
50 mm
Moving Element Mass :
6 kg
Payload :
200 kg
Power Amplifier :
3-phase AC 380V 50Hz
Description

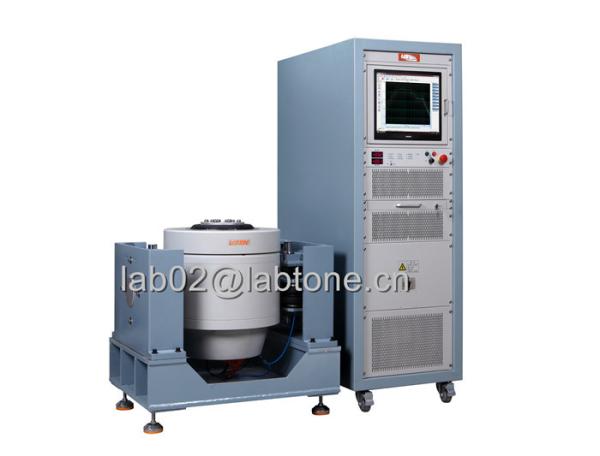

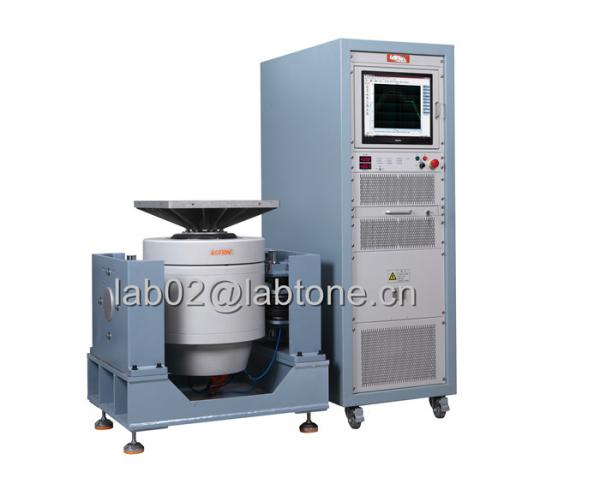

12 Months Warranty Dynamic Shaker Vibration Testing Machine For Cell Test

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.

Specifications

Model EV206
Vibration Generator VG300/50
Frequency(Hz) 2-3000
Max Exiting Force(kg.f) 600
Max. Displacement (mmp-p) 50
Max. Acceleration(g) 100
Max. Velocity(cm/s) 200
Payload(kg) 200
Armature Mass(kg) 6
Armature Diameter(mm) φ200
Cooling Method Air Cooling
Vibration Generator Weight(kg) 920
Vibration Generator Dimension L*W*H(MM) 800*600*710
Power Amplifier Amp6k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 320
Power Amplifier Dimension L*W*H(MM) 800*550*1250
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 20
Dynamic Shaker Vibration Testing Machine simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.

Features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation

Use Scenarios

  • Qualification testing of automotive parts and systems, including industry standards like ISO/TS 16949, Squeak and Rattle tests, and Road Load Data applications
  • Electronic assembly and computer equipment testing
  • Avionics and military hardware testing, such as Mechanical Environmental Tests AECTP 400, ISO 9000, MIL-STD and AS9000 standard tests
  • Telecommunication and satellite component testing
  • General stress screening, including ISO 5344, HALT, ALT and HASS
  • Product and package testing, such as ISTA and ASTM 4169 tests
  • Shock test applications, including Shock Response Spectrum (SRS)
  • Environmental testing with AGREE chambers, Combined Environmental Reliability Test (CERT) and others

Application:

Electrodynamic Vibration Shaker For Electronic Assemblies Test 200 Kg Payload
