Specifications
Brand Name :
LABTONE
Model Number :
EV206
Certification :
CE / ISO
Place of Origin :
Dongguang, China
MOQ :
1 Set
Payment Terms :
T/T, L/C
Delivery Time :
45 Working Days
Packaging Details :
Plywood Case with Vacuum Packing
Price :
Negotiable
Supply Ability :
15 Sets / Month
Product Name :
Vibration Lab Equipment
Armature Diameter :
￠200
Maximum Displacement :
50 mm
Cooling Blower :
BL-600
Power Amplifier Model :
Amp6k
Effectie Load :
200 kg
Mass of Moving Elements :
6 kg
Description

Standard And Customized Vibration Test Systems Vibration Meter, New Energy

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Pptoelectronics, Instrument etc.

Specifications: EV232-EV330

Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35

Features:

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability

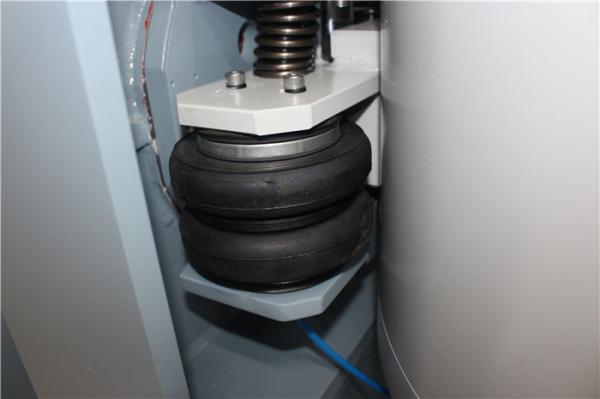

  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.

Customer Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

Formular:

New Energy Vibration Lab Equipment , Vibration Testing Services With CE / ISO

New Energy Vibration Lab Equipment , Vibration Testing Services With CE / ISO

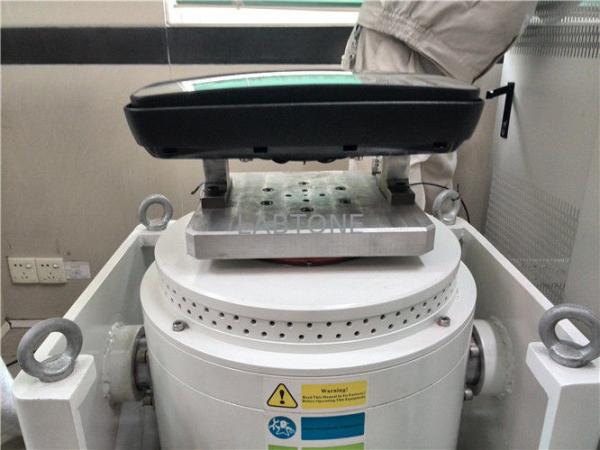

Detailed Pictures:

New Energy Vibration Lab Equipment , Vibration Testing Services With CE / ISONew Energy Vibration Lab Equipment , Vibration Testing Services With CE / ISO
