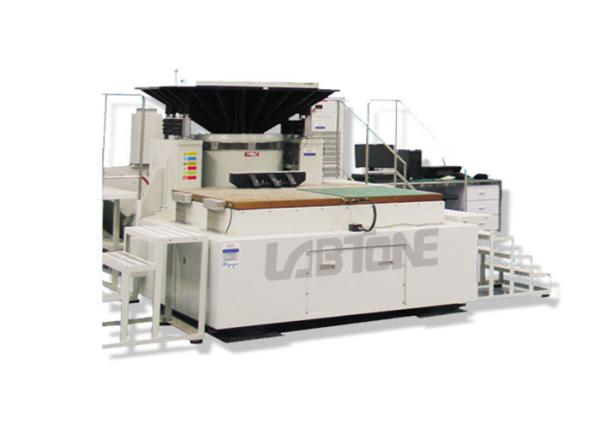

Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
Specifications
Brand Name :
LABTONE
Model Number :
EV240
Certification :
CE / ISO
Place of Origin :
Dongguang, China
MOQ :
1 Set
Payment Terms :
T/T, L/C
Delivery Time :
45 Working Days
Packaging Details :
Plywood Case with Vacuum Packing
Price :
Negotiable
Supply Ability :
15 Sets / Month
Mass of Moving Elements :
40 kg
Armature Diameter :
￠400
Maximum Displacement :
50 mm
Cooling Blower :
BL-4000
Power Amplifier Model :
Amp50k
Effectie Load :
800 kg
Description

Low Noise Vibration Test Equipment For Battery Products With 3axis Direction

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Pptoelectronics, Instrument etc.

Specifications: EV240-EV330

Model EV240 EV250 EV260 EV320 EV330
Vibration Generator VG4000/50 VG5000/50 VG6000/50 VG2000/76 VG3000/76
Frequency(Hz) 2-2500 2-2500 2-2500 2-3000 2-2500
Max Exiting Force(kg.f) 4000 5000 6000 2000 3000
Max. Displacement (mmp-p) 50 50 50 76 76
Max. Acceleration(g) 100 100 100 80 80
Max. Velocity(cm/s) 200 200 200 200 200
Payload(kg) 800 1000 1000 1000 1000
Armature Mass(kg) 40 50 50 25 35
Armature Diameter(mm) φ400 φ450 φ450 φ320 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 2500 3500 3800 2000 3000
Vibration Generator Dimension L*W*H(MM) 1400*980*1100 1600*1120*1340 1600*1120*1340 850*1000*1100 1100*1300*1440
Power Amplifier Amp50k Amp60k Amp70k Amp30k Amp45k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 600 800 1000 550 600
Power Amplifier Dimension L*W*H(MM) 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 64 85 95 40 60

Features

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.

Customer Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

Working Principle:

Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load

Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load

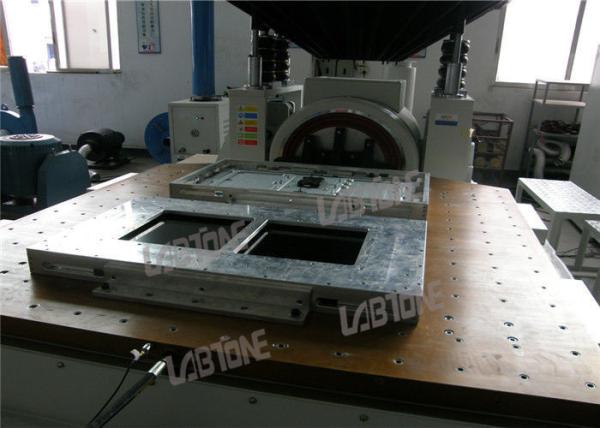

Detailed Pictures:

Low Noise Vibration Test System With 3axis Direction 800 Kg Effectie Load
