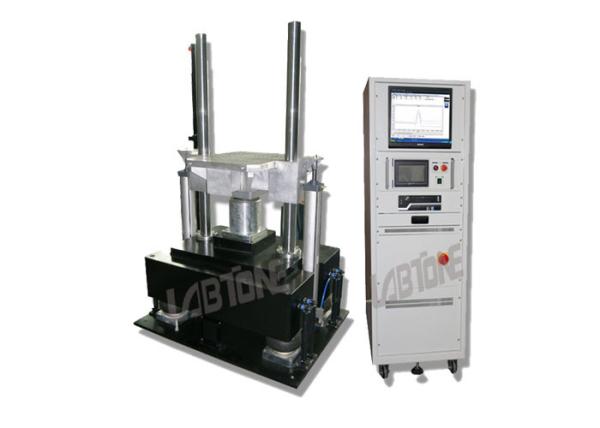

Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller
Specifications
Brand Name :
LABTONE
Model Number :
SKT100
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
45 working days
Packaging Details :
International wooden case
Supply Ability :
15 Sets / Month
Table Size :
70 x 80 cm
Max. specimen weight :
100 kg
Max. acceleration :
Half sine: 600G
Machine dimension :
130x120x260 cm
Machine weight :
3200 kg
Power supply :
3 phase AC 380V 50Hz
Description

Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller​

Product description
Shock tests accurately measure the fragility of products and evaluate how they respond to specific shock inputs. Shock test data is key information when determining if your product is capable of withstanding its intended distribution and use environment. For any mechanical shock testing application, Labtone builds a Shock Test System to meet your needs.

Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL

Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.

Shock testing System Block Diagram

Half Sine Shock Test Machine, Mechanical Shock Test Systme with PC and Controller

Shock testing systems Specifications

Feature

· Generation of Trapezoidal Pulse and Half-sine Pulse.

· Equivalent Drop Test of Packaged Freights.

· The controller can easily set the testing conditions.

· Rebound Brake Mechanism.

· High Rigid Shock Table.

· Seismic Base.

· Self-check Security System.

Applications

· Fragility test of products.

· Shock standard test of products.

· Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machine, refrigerator and etc.

· Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machine, refrigerator and etc.

· Free drop equivalent test packaged freights.

Product Option Highlights

Low frequency Seismic Base to limit the shock energy that transmits to the floor

Customized table mounting patterns available

Low Impulse Kits to extend low level testing capability

Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+)

Hold Down Fixtures for securing test items

Additional Shock Pulse Programmers for long duration half sine and terminal peak sawtooth shock pulses

Opposing Force Gas Programmers for longer duration half sine shock pulses (30+ msec)

Test Partner Data Acquisition and instrumentation for data collection and analysis

Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL
