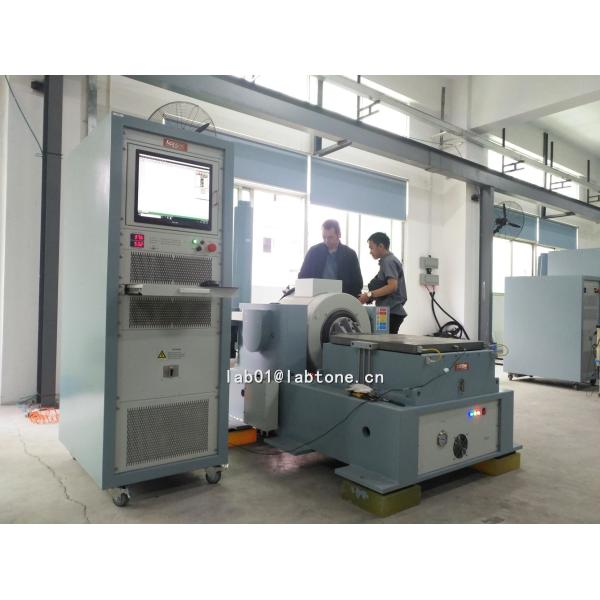

6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz
6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz
6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz
6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz
6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz
6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz
Specifications
Brand Name :
LABTONE
Model Number :
EV206
Certification :
CE / ISO
Place of Origin :
Dongguang, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
15 Sets / Month
Delivery Time :
25-30 days
Packaging Details :
Plywood Case with Vacuum Packing
Rated Sine Force :
6 kN
Random Force :
6 kN
Frequency :
2-3000 Hz
Max. Acceleration :
100G
Max. Velocity :
200cm/s
Max. Displacement :
50 mm
Certificate :
ISO, CE
Description

6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz

Specifications: EV203-EV220

Model EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 600 1000 2000
Max. Displacement (mmp-p) 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100
Max. Velocity(cm/s) 120 180 200 200 200
Payload(kg) 120 200 200 300 400
Armature Mass(kg) 3 6 6 10 20
Armature Diameter(mm) φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 18 20 25 35

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.


Features:

  • Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
  • U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  • Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
  • Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
  • Able to complete sine ,random , impact environmental tests
  • This system requires voltage fluctuation, ≤±10%
  • This system requires Grounding resistance, ≤4Ω
  • High reliability, especially suitable for long-time operation

Detailed Pictures:

6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz

6 kN Exiting Force Vibration Test System, Vibration Shakers Frequency Up To 3000Hz

Our Services:
Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label
