120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
Specifications
Brand Name :
LABTONE
Model Number :
EV203
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1set
Delivery Time :
45 working days
Packaging Details :
International Wooden case
Name :
120kg load Vibration Testing Equipment For Battery Package Meets IEC62133 Stardard
Sine Force :
3000N
Shock Froce :
6000N
Displacement :
40mm
Max Velocity :
2.0m/s
Cooling Method :
Air-cooled
Description

120kg load Vibration Testing Equipment For Battery Package Meets IEC62133 Stardard

Electrodynamic Shaker Capabilities

  • Sine: 3000N
  • Random: 3000N
  • Shock: 6000 N (peak)
  • Frequency range: 2 Hz to 2500 kHz
  • Maximum Velocity: 2.0m/s
  • Maximum Acceleration: 100 G (half sine) with a bare armature
  • Maximum payload: 120 kg
  • Maximum displacement: Shock: 40mm (p-p)

A unique trunnion and guidance bearing assembly provides simple shaker rotation capability and body vibration isolation. The electrodynamic shaker can be rotated to the vertical position for one axis and then to the horizontal position where it is connected to a horizontal slip plate for the other two axis testing.

EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation.Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized,. There is no need for additional foundation in most of the cases


Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Specification:

Model
EV103
EV203
EV106
EV206
EV210
EV220
Frequency(Hz)
2-4000
2-2500
2-3000
2-3000
2-3000
2-2500
Max Exiting Force(kg.f)
300
300
600
600
1000
2000
Max. Displacement
(mmp-p)
25
38
25
50
50
50
Max. Acceleration(g)
100
100
100
100
100
100
Max. Velocity(cm/s)
200
120
180
200
200
200
Payload(kg)
110
120
200
200
300
400
Armature Mass(kg)
3
3
6
6
10
20
Armature Diameter(mm)
φ150
φ150
φ200
φ200
φ240
φ320
Cooling Method
Forced Air Cooling
Vibration Generator Weight(kg)
460
460
720
920
1100
1600
Vibration Generator Dimension L*W*H(MM)
750*560*670
750*555*670
800*600*710
800*600*710
845*685*840
1200*870*1100
Power Amplifier
Amp3k
Amp3k
Amp6k
Amp6k
Amp12k
Amp22k
Cooling Method
Forced Air Cooling
Power Amplifier Weight(kg)
250
250
320
320
350
500
Power Amplifier Dimension L*W*H(MM)
800*550*1250
Utility Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)
8
9
18
20
25
35

Head Expanders

Size(mm): 300 x 300-1500x1500

Material: Aluminium /Magnesium

Expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.

Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation

Pre-Sales Service

* Technical consultation: test method, laboratory planning and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

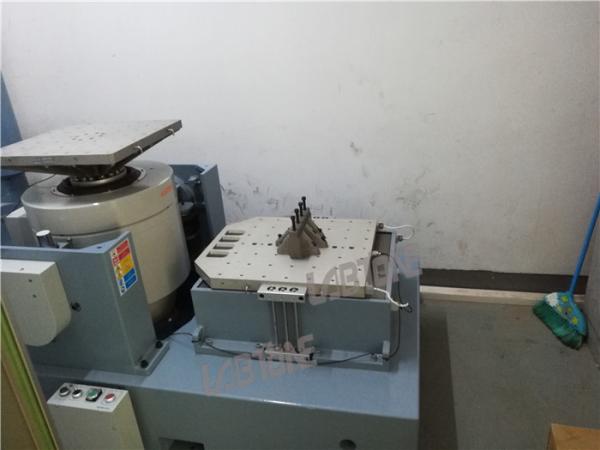

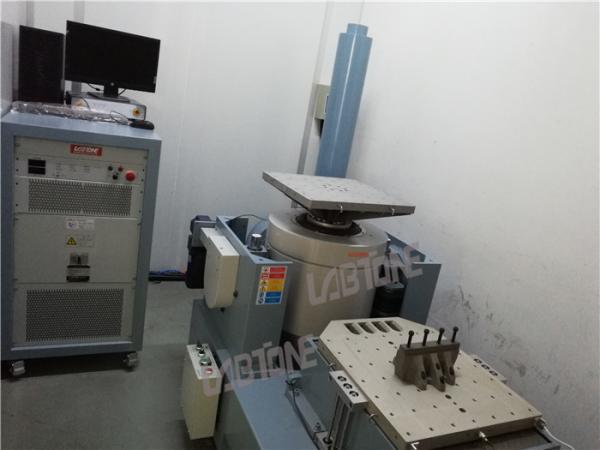

Detial Images

120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard

120kg load Vibration Table Testing Equipment For Battery Package Meets IEC62133 Stardard
