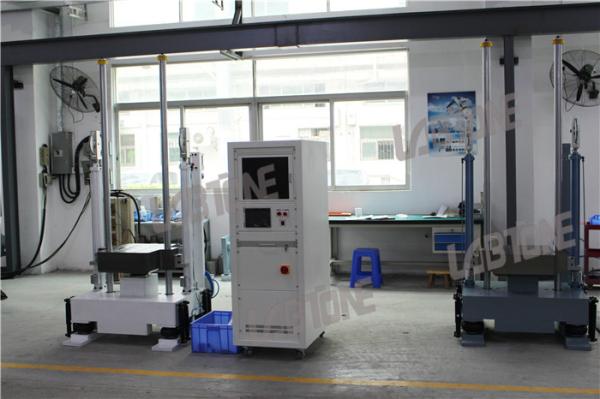

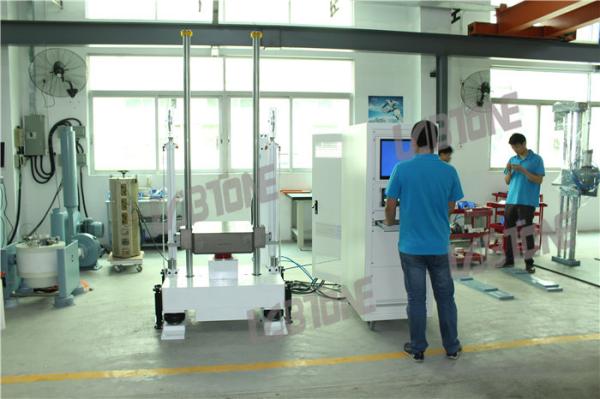

200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F
200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F
200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F
200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F
200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F
200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F
Specifications
Brand Name :
LABTONE
Model Number :
SKT200
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15 Sets / Month
Delivery Time :
45 working days
Packaging Details :
International wooden case
Table Size :
100 x 100 cm
Max. specimen weight :
200 kg
Max. acceleration :
Half sine: 600G
Machine dimension :
150x130x260 cm
Machine weight :
4200 kg
Power supply :
3 phase AC 380V 50Hz
Description

200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F

Product description

Shock or bump test mainly simulate the impact effects of product and its components encountered in usage and transit process. Through standard and high-reproducibility instant energy exchange, you can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. Shock tester is one of destructive experiments, and do destructive test on the product to evaluate the product reliability and monitor the consistency of production line.

Product Features
  • TouchTest Shock 2 Controller for easy and safe operation
  • Cast aluminum table design to produce high quality shock pulses
  • Damage Boundary Programmer for generating 2 msec half sine and long duration trapezoidal shock pulses
  • Electric hoist lifting and positioning System enables precise drop repeatability
  • Full range of applications training programs available
  • Worldwide Customer Service department

Product Option Highlights
  • Low frequency Seismic Base to limit the shock energy that transmits to the floor
  • Customized table mounting patterns available
  • Low Impulse Kits to extend low level testing capability
  • Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+)
  • Hold Down Fixtures for securing test items
  • Additional Shock Pulse Programmers for long duration half sine and terminal peak sawtooth shock pulses
  • Opposing Force Gas Programmers for longer duration half sine shock pulses (30+ msec)
  • Test Partner Data Acquisition and instrumentation for data collection and analysis

Shock testing systems Specifications

Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

200kg Payload Shock / Bump Tester Shock Test System With table 100 x 100 cm MIL-STD-202F

Customer Services

Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
