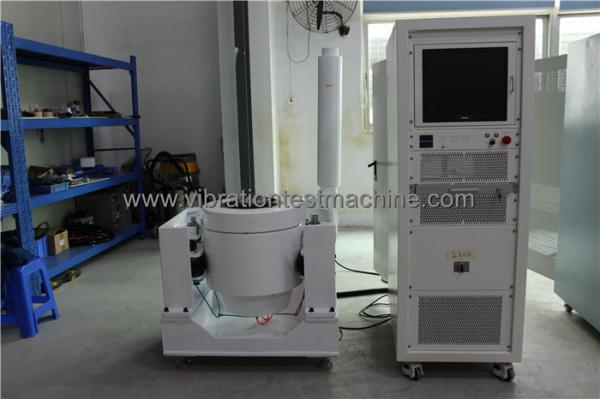

Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Specifications
Brand Name :
LABTONE
Model Number :
EV210
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1set
Delivery Time :
45 working days
Packaging Details :
International Wooden case
Name :
Electrodynamic Shaker Vibration Test System Meets MILSTD 810G Method 516.6
Sine Force :
1000kg.f(10kN)
Max.payload :
300kg
Displacement :
51mm
Max Velocity :
2.0m/s
Cooling Method :
air-cooling
Description

Electrodynamic Shaker Vibration Test System Meets MILSTD 810G Method 516.6

Electrodynamic Shaker Discription

Electrodynamic Shaker: swept sine, random, sine on random, resonance search, fixed frequency

A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection

Vibration testing system Applications:
automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc

Electrodynamic Shaker Capabilities

  • Sine: 1,000 kgf (peak)
  • Random: 1,000 kgf (rms)
  • Shock: 2,000 kgf (peak)
  • Frequency range: 2 Hz to 3000 kHz
  • Maximum Velocity: 2.0m/s
  • Maximum Acceleration: 100 G (half sine) with a bare armature
  • Maximum payload: 300 kg
  • Maximum displacement: Shock: 51 mm (p-p), Continuous: 40 mm (p-p)

Electrodynamic Shaker Specification:

Model
EV103
EV203
EV106
EV206
EV210
EV220
Frequency(Hz)
2-4000
2-2500
2-3000
2-3000
2-3000
2-2500
Max Exiting Force(kg.f)
300
300
600
600
1000
2000
Max. Displacement
(mmp-p)
25
38
25
50
50
50
Max. Acceleration(g)
100
100
100
100
100
100
Max. Velocity(cm/s)
200
120
180
200
200
200
Payload(kg)
110
120
200
200
300
400
Armature Mass(kg)
3
3
6
6
10
20
Armature Diameter(mm)
φ150
φ150
φ200
φ200
φ240
φ320
Cooling Method
Forced Air Cooling
Vibration Generator Weight(kg)
460
460
720
920
1100
1600
Vibration Generator Dimension L*W*H(MM)
750*560*670
750*555*670
800*600*710
800*600*710
845*685*840
1200*870*1100
Power Amplifier
Amp3k
Amp3k
Amp6k
Amp6k
Amp12k
Amp22k
Cooling Method
Forced Air Cooling
Power Amplifier Weight(kg)
250
250
320
320
350
500
Power Amplifier Dimension L*W*H(MM)
800*550*1250
Utility Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)
8
9
18
20
25
35

Head Expanders

Size(mm): 300 x 300-1500x1500

Material: Aluminium /Magnesium

Expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.

Fixture / Cube

Material : Aluminium /Magnesium
According to customer's actual demand,we can offer diferent shapes of fixture,such as three-dimensional square,L and T shape.

Pre-Sales Service

* Technical consultation: test method, laboratory planning and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Workshop

Please contact us for details Email : lab02@labtone.cn

Electrodynamic Vibration Shaker Vibration Test System Meets MILSTD 810G Method 516.6
