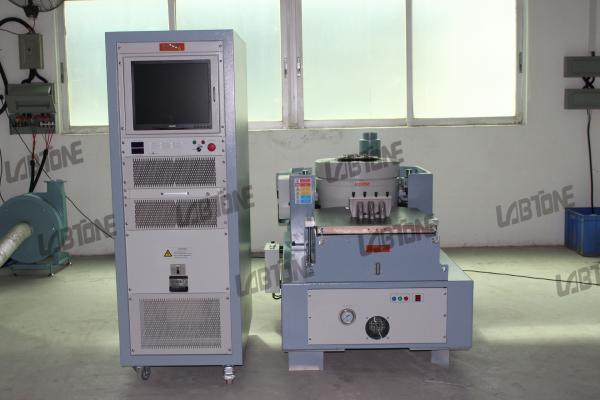

Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts
Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts
Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts
Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts
Specifications
Brand Name :
LABTONE
Model Number :
EV206
Certification :
CE / ISO
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
15 Sets / Month
Delivery Time :
45 Working Days
Packaging Details :
Plywood Case with Vacuum Packing
Rated Sine Force :
600 kg
Max. Poyload :
120 kg
Max. Displacement :
50.8 mm
Power Supply :
3-phase AC 380V / 50Hz
Shaker Model :
VG300/40
Shaker Diameter :
Dia 200mm
Description

Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts

Description

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Parameters: EV203-EV220

Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50.8 50.8 50.8
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 200 300
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35

Features:

  1. Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  2. Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
  3. High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
  4. Quick self-diagnosis with safety interlock, high safety reliability.
  5. Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance.
  6. Horizontal and vertical expansion platforms for different applications.
  7. Simple controller operation.

Product Application

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Working Principle:

Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts

Our Services:

Presales:

a.Technical consultation: test method, laboratory planning and suggestion.

b.Equipment selection: selection scheme, FAQ.

c.Product testing scheme.

In-Sales:

a.Customer communication and progress report.

b.Guidance for pre-installation preparation, equipment commissioning and test run

c.Calibration (when Third Party’s verification is required)

After-Sales:

a.Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

b.Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

c.Technical support: special paid services are provided according to customer’s needs.

Packaging:

Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts

Workshop:

Long Stroke Vibration Shaker System Vibration Tests for Electric and Electronic Parts
