22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2
22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2
22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2
22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2
Specifications
Brand Name :
LABTONE
Model Number :
EV210
Certification :
CE / ISO
Place of Origin :
Dongguang, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
15 Sets / Month
Delivery Time :
45 Working Days
Packaging Details :
Plywood Case with Vacuum Packing
Sine Force Peak :
2400kg.f(10 kN)
Random force :
2200kg.f(10 kN)
Shock force :
4400kg.f(44 kN)
Frequency Range :
2-3000 Hz
Max Displacement :
51 mm
Power Supply :
3-phase AC 380V / 50Hz
Power :
AC 380V 50HZ or Customized
Usage :
Simulation Transport Vibration Test Machine
Warranty :
12 Months
Description

22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2

A Vibration Test System consists of four major components

  • Shaker
  • Power Amplifier
  • Cooling Blower
  • Measurement and Control System
    • Accelerometers and Cables
    • Charge Amplifier, depending on which type of accelerometers.
    • Control System, sometimes including DATA Analysis Software

Equipment Configuration

Item Configuration Qty.
1) Vibration shaker
A20S34 shaker (included Pneumatic Centering Controller) 1 set
B752S blower (included silencer and Duct ) 1 set
Head Expander VT80CM 1 set
Horizontal Slip table HG80M 1 set
2) Power Amplifier
LA20K Power amplifier(including Field power supply) 1 set
3)

Vibration Controller-Vcs-02

(Including Hardware and Control Functions Program software CDS
Accelerometer (Including Length 7m low noise BNC-M5 cable) 2 set
Computer(Including keyboard, mouse and monitor) 0 set
4)

Documentation

Operation Manual, Packing List

 1 set
5) Accessories
Maintenance Tools 1 set
Standard Spare Parts 1 set

Technical Parameters

Shaker Specifications
Peak Sine (Pk) 2400Kg.f peak (24KN)
Random (RMS) 2200Kg.f rms (22KN) @ISO5344
Shock (Pk) 4400Kg.f peak (44KN) @6ms
Usable Frequency DC～3000Hz
Maximum Displacement (p-p) 51mm (2inch)
Max. velocity 2m/s
Max. acceleration Sine:100g (980 m/s2)；Random: 60g (588 m/s2)
Vertical Load Support 400 kg

Body Suspension Natural

Frequency (Thrust Axis)

 Less than 2.5 Hz
Armature Diameter Ф340 mm
Armature Weight About 24kg

Fundamental Resonance

Frequency (Bare table)

 2,600 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

 21stainless steel M10 Inserts
Stray Flux Density ＜10gauss
Allowable partial force 500.N.M
Shaker dimensions 1190mmL×860mmD×1060mmH
Power Amplifier Specifications LA20K
Rated Output Capacity 22KVA
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 650mmL×920mmD×1780mmH
Weight of Amplifier 470Kg
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel
Shaker controller Specifications VCS-02
Hardware

2 Analog Input Channels, 1 Drive Channel

102.4 kHz Sampling Rate, 40kHz Frequency Range,

>120dB Dynamic range ,24-bit ADC/DAC,Centralized 32-bit floating DSP processing and low-noise design ,> 90 dB Random control dynamic range , Windows O/S GUI and Ethernet connectivity, graphic interface.-20~60℃ Working Temperature Fanless Structure to Reduce the Background Noise.
Control Functions

●Base Random,●Swept Sine,●Classic Shock,

●Resonance Search and Tracked Dwell(optional)
PC Configuration: ● PC(i3-3.6GHz CPU 8GB 1TB 1000Mbps Ethernet port.and 4 USB port / Microsoft Windows 10 OS)
Control Accelerometers

●Mode: LTE-B03A00

High sensitivity Charge acceleromteter ,C M5 coaxial plug to BNC plug low noise cable ,1—8kHz ,20mV/g ,M5 side Conn,Ground isolation,-40℃ to 160℃
Head Expander Specifications VT80CM
Material Magnesium alloy
Dimension 800mmX800mm
Effective Mass in kg 50KG
Usable Frequency Random: 2000Hz; Sine: 1300Hz
Horizontal Slip Table HG80M
Material Magnesium alloy
Dimension 800mmX800mm
Effective Mass in kg 70KG
Usable Frequency 2000Hz
Blower Specification B752S
Blower Power 7.5kW (10 HP)
Air Flow/Pressure: 1.35 m3/s @0.008 Mpa
Blower dimensions 950mmx720mmX1460mm
Weight of Blower 190kg
System Environmental Requirement
Power Requirement 380VAC, 50 Hz, 3Ph, 44 kVA
Operating Room Temperature 0 to 40 degree C
System Continuous Duty not less than 8 hours at the full ratings
Humidity 0 to 85%, non condensing
Compressed Air Requirement 0.7 Mpa

Test requirements and model selection guide

To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following test specifications should be known:

  • Clear Testing Requirements
  • Frequency (Frequency Range)
  • Maximum Acceleration
  • Maximum Displacement
  • Maximum Velocity
  • Specimen Weight and Fixation

The specimen fixation is selected based on the upper limit of test frequency and specimen size, either vertical expansion platform or horizontal slip table. Specimen mass is needed to evaluate the required exciting force for vibration tests.

When evaluating the exciting force needed for vibration test, you can choose a temporary armature mass (according to the model of EV series)

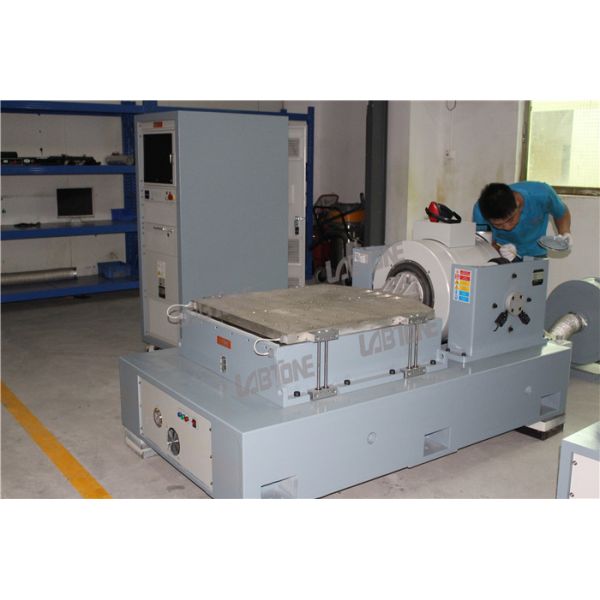

Vibration Testing Equipment Pictures​:

22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2

22KN Vibration Test Equipment With 80x80cm Test Table,Vibration Controller VCS-2
