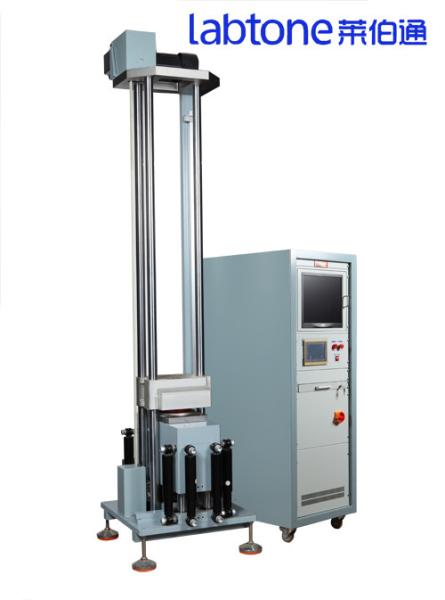

CE / ISO Standards High Speed Shock Test System With 10kg Payload
CE / ISO Standards High Speed Shock Test System With 10kg Payload
Specifications
Brand Name :
LABTONE
Model Number :
HSKT10
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
15 Sets / Month
Delivery Time :
45 working days
Packaging Details :
International plywood case
Model :
HSKT10
Table size :
200*250mm
Max. Payload :
10kg
Shock Pulse :
Half Sine Force
Acceleration Range :
20~2000g
Pulse Duration :
0.2~18ms
Max. Drop Height :
1500mm
Machine Dimension :
660*700*2380mm
Description

10kg Payload High Speed Shock Test System Complies With CE/ISO Standards

Description
Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. Regardless whether you want to do a boundary assessment on complete product breakage, industrial standard shock pulse or company's internal standards, we can provide the most advanced shock test systems to meet your application requirements.
Application

Main applications: mobile phones, computer components, optical components, connectors, etc, also used to test the shock absorbance ability of materials.

Specifications

Model HSKT10 HSKT30 USKT30
Table size (mm) 200*250 300*300 300*300
Max. Payload (kg) 10 30 30
Shock Pulse Half Sine Wave
Acceleration Range (g) 20~2000(bare table) 20~1500(bare table) 20~10000(bare table)
Pulse Duration (ms) 0.2~18 0.5~30 0.2~18
Max. Drop Height (mm) 1500 1200 1200
Machine Dimension (mm) 660*700*2380 7200*680*1890 1350*1250*3300
Power Supply AC220V 50Hz 5A, Compressed Air: more than 0.5Mpa Mpa
Machine Weight (kg) 820 650 1850

Company Profile

Labtone Test Equipment Co., Ltd. is a +19 year china manufacture in the filed of environmental testing system.

Our superior products mainly include: Vibration Test Systems, Shock Test Systems, BumpTest Machine, Drop Tester, Transportation Simulators and etc.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience, and commitment to new product development, has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one year(12months) warranty, we provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to help solve your problems.

With reasonable price, high performance, long term reliability and outstanding service, we sincerely hope you can give us the opportunity to serve your organization.

FAQ


1. How to select the suitable shock test system model?

Depends on the specimen weight, dimension and testing requirement.

2. The purpose of shock test?

  • Evaluate the product's structural integrity and functional stability under non-repetitive strong impact conditions during use.
  • Evaluate the fragility of the outer packaging of the product to protect the structural and functional integrity of the product during transportation.
  • When rhe product is installed on a platform where a collision may occur, it is necessary to assess and test the strength (fracture), rigidity (deformation), of the device used to fix the product on the platform, and the impact on the product.
  • Evaluate the impact of possible throw, drop, and free fall on product performance during loading and unloading, transportation or installation, and debugging.

Service

Pre-Sales Service

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.
  • Customer communication and progress report.

​In-sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when third party's verification is required).

After-Sales Service

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
