High Frequency Electrodynamic Vibration Test System Comply With MIL-STD DIN ISO ASTM IEC

Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Photoelectronics, Instrument etc.

Specifications

Features:

• Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
• Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
• High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
• Quick self-diagnosis with safety interlock, high safety reliability
• Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
• Provide horizontal and vertical expansion platform for different application
• Simple controller operation

Frequently Asked Questions

1.How do you attach the hardware you're testing to your shaker ?

By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from soild stock. Most fixtures are welded.

2.How do you control shakers ?

If we're looking for resonances in the product we're testing, we command the shaker to shaker the product at one frequency at a time but to vary that test frequency, to sweep it over a range frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.

3.What are those resonances ? Are they bad ?

Have you ever noticed the steering wheel moving with rather a large displacement amplitude, large than the input to the column? That magnification is called resonance. Possibly it annoys you. There's a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.

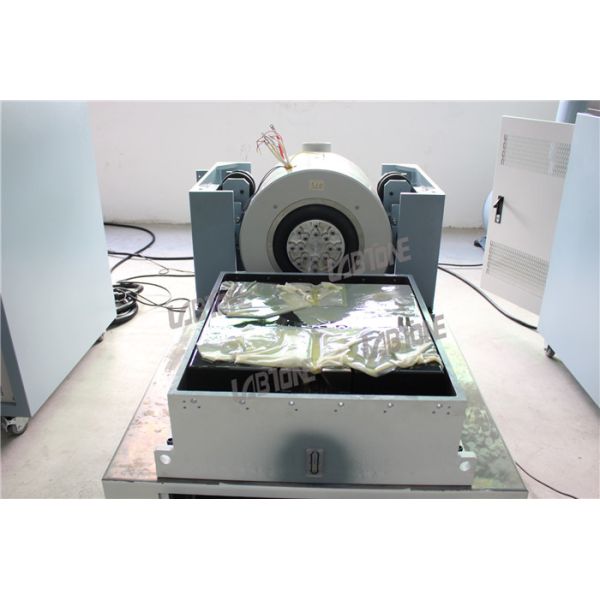

Product images:

Please contact us to discuss your specific vibration testing needs and system requirements. We will give you the best solution!
