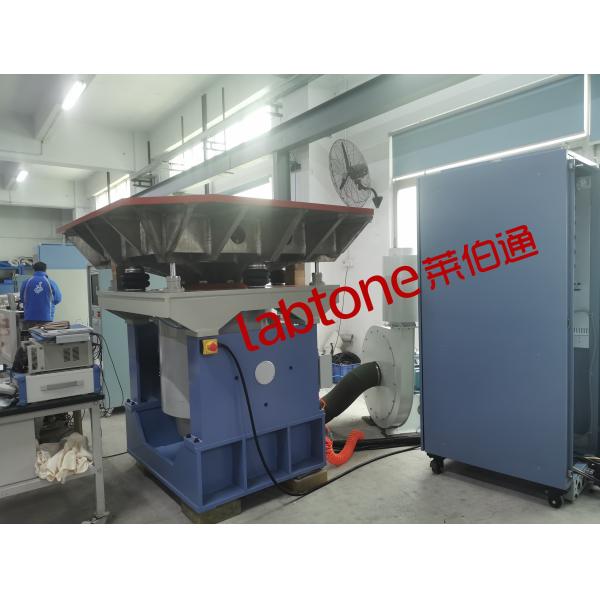

Vibration Shaker System Comply with SAE J575, SAE J1211, SAE J1455, SAE J1810

Vibration testing simulates the vibration conditions that a product might experience during its lifetime but under a controlled and repeatable test environment. Vibration tests are conducted in an accredited vibration testing lab to ensure that finished products can perform safely during operation or transit and to avoid unexpected performance issues or early failure during use. Because products spend their lifetime in different environments and these environments exhibit unique vibration profiles, our vibration testing services are tailored to fit each unique environment with specific vibration control profiles.

Vibration Shaker System Specifications: EV440

The model selection of the vibration test system has the following steps:

1. Determine the test frequency range and limit peak motion (acceleration, velocity and displacement) according to the test conditions.

2. Determine the mass (DUT) of the item under test and the dimensions of the mounting surface required to bolt the DUT to a shaker table with its center of gravity (CG) over the table’s center. This may require use of a head expander and/or other mounting fixture. Determine the mass of such additional hardware including all mounting fasteners.

Look at the shaker specifications for the test system. Verify that the mass of the part under test and any mounting fixture is less than the maximum static load rating of the shaker. Verify that the component under test (or its mounting hardware) can be bolted to the shaker armature or head expander. Add the effective armature mass and expansion head mass to the mass of the object under test as well as the mass of any mounting clamps and fasteners and the mass of any accelerometers mounted on the object under test -- this is the total moving mass the shaker must move during the test. Multiply the total moving mass by the acceleration determined in step 1 to calculate the force required. Verify that the test and DUT required to determine the test frequency range, force, peak acceleration, peak velocity, and peak displacement is less than the corresponding performance rating of the selected shaker system. If this is true, the shaker chosen is acceptable. If not, a more powerful shaker is required.

Working Principle:

Application:
