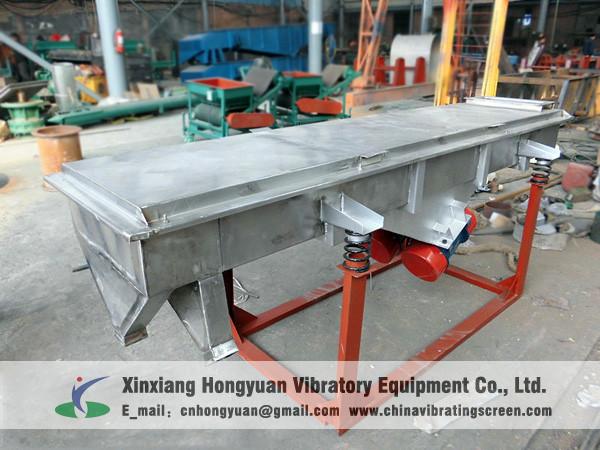

High quality fine sieve mesh vibrating screen for industrial flour sifter
High quality fine sieve mesh vibrating screen for industrial flour sifter
Specifications
Place of Origin :
China
Brand Name :
Hongyuan
Certification :
CE, ISO
Model Number :
DZSF-520
MOQ :
1 Set
Price :
FOB 500-3500 USD
Packaging Details :
In standard wooden boxes
Delivery Time :
5-7 working days after receiving your deposit.
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300 Sets / month
Description

High quality fine sieve mesh vibrating screen for industrial flour sifter

Product Description

High quality fine sieve mesh vibrating screen for industrial flour sifter use excellent vibrate motor as power source, so that the materials can be

thrown up on the sieve and forward to make a straight movement. It can be equipped with

single or multiscreen to achieve the grading, removing impurity, removing dust, testing, washing

selecting, detydration etc.

Detailed Images

The main structures of High quality fine sieve mesh vibrating screen for industrial flour sifter

The screen frame with bounce ball, it is to prevent materials blocking.

Different mesh size for different granulations or powders size

Working Principle

High quality fine sieve mesh vibrating screen for industrial flour sifter adopts dual vibrating motors. When the two motors do synchronized and reverse rotation, the generated centrifugal force is offset in the parallel direction of motor axis, and stacked together as a resulting force in the perpendicular direction of the motor axis. Hence, the sieving machine trajectory is a straight line. There is a inclination in the relative sieve surface of two motors, under the resulting force of exciting force and the force of gravity, the material was thrown up on the screen and leaped forward for linear motion so as to achieve the purpose of screening and grading of materials. It can be applied to the assembly line to achieve the automatic work, which has the features of low energy consumption, High efficiency, simple structure, easy maintenance, fully enclosed structure, no dust.

Note:features

1. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.

2. Rubber springs may be used on customers’ requests, which would considerably reduce running noise, improving labors’ working environment.

Technical reference of High quality fine sieve mesh vibrating screen for industrial flour sifter

Model vibration surface size(mm) Layer mesh size(mm) Screening Capacity(t/h) Vibration Times(r/min) Amplitude(mm) Power(kw) Size(mm)
DZSF520 500×2000 1
2
3
1
2
3
4
5
6		 2-200 0.05-5 960 6-7 2×0.4 2140×808×848
2DZSF520 0.05-5 960 6-7 2×0.4 2199×808×878
3DZSF520 500×2500 0.03-5 1450 4-6 2×0.4 2256×808×938
DZSF525 0.06-8 960 5-7 2×0.4 2642×808×848
2DZSF525 0.06-8 1450 4-6 2×0.4 2699×808×878
3DZSF525 0.06-8 960 6-8 2×0.75 2750×808×938
4DZSF525 0.1-15 1450 5-7 2×0.4 2813×808×1000
5DZSF525 0.08-15 1450 5-7 2×0.4 2883×808×1060
6DZSF525 0.07-15 960 6-8 2×0.75 2953×808×1120
DZSF1020 1000×2000 1 0.12-20 960 6-8 2×0.75 2152×1320×900
2DZSF1020 2 0.11-20 960 5-7 2×0.75 2219×1320×960
3DZSF1020 1000×2000 3 2-200 0.10-2 960 5-7 2×0.75 2286×1320×1030
4DZSF1020 4 0.07-15 960 4-8 2×0.75 2353×1320×1100
5DZSF1020 5 0.07-15 960 4-8 2×1.5 2420×1320×1160
6DZSF1020 6 0.07-15 960 4-8 2×1.5 2487×1320×1220
DZSF1025 1000×2500 1 0.1-15 1450 5-7 2×0.4 2203×1320×900
2DZSF1025 2 0.08-15 1450 5-7 2×0.4 2269×1320×960
3DZSF1025 3 0.07-15 960 6-8 2×0.75 2336×1320×1030
DZSF830
2DZSF830
3DZSF830		 800×3000 1
2
3		 0.1-20 960 6-8 2×0.75 3080×1098×1120
0.1-20 960 6-8 2×0.75 3140×1098×1180
0.1-20 960 6-8 2×1.5 3200×1098×1240
DZSF1030 1000×3000 1 0.1-20 960 6-8 2×0.75 3152×1340×1120
2DZSF1030 2 0.1-20 960 6-8 2×1.5 3219×1340×1120
3DZSF1030 3 0.1-20 960 6-8 2×1.5 3286×1340×1120
DZSF1224 1200×2400 1 0.1-23 960 6-8 2×0.75 2480×1520×1100
2DZSF1224 2 0.1-23 960 6-8 2×0.75 2540×1520×1160
3DZSF1224 3 0.1-23 960 6-8 2×1.5
