Automatic Truck Loading Belt Conveyor system used for material transfer
Automatic Truck Loading Belt Conveyor system used for material transfer
Automatic Truck Loading Belt Conveyor system used for material transfer
Automatic Truck Loading Belt Conveyor system used for material transfer
Automatic Truck Loading Belt Conveyor system used for material transfer
Automatic Truck Loading Belt Conveyor system used for material transfer
Specifications
Place of Origin :
China
Brand Name :
Hongyuan
Certification :
CE,ISO
Model Number :
DY5051
Length(m) :
5
Bandwidth(mm) :
500
Tape speed(m/s) :
1.6
Max delivery height(m) :
1.63
Conveying capacity(m3/h or t/h) :
160 or 145
Angle of repose(°) :
13°59′
Electric- roller Type :
DY1.4
Power（KW） :
2.2
Total-weight(kg) :
518
MOQ :
1 SET
Price :
999USD
Packaging Details :
In standard fumigation wooden box
Delivery Time :
In 7-15 days after getting the deposit
Payment Terms :
TT,LC,WESTEN UNION
Supply Ability :
300 Sets/month
Description

Automatic Truck Loading Belt Conveyor system used for material transfer

Product Description

The belt conveyor is a kind of continuous mechanical handing equipment with high efficiency, good safety and good mobility. Mainly used for short-distance transport, handing of bulk material and the product one-piece weight less 100kg on loading and unloading stations which are often changed, such as the port, terminal, station, coal yard, warehouse, building site, sand quarry, farm and so on. It can be divided into lift and not lift type, the running of belt is driven by electric-roller, and the whole lifting and running are non-motorized.

Technical data of belt conveyor

Item

DY5051

DY5071

DY50101

DY50102

DY50102A

DY50151

DY50152

DY50152A

Length(m)

5

7

10

10

10

15

15

15

Bandwidth(mm)

500

500

500

500

500

500

500

500

Tape speed(m/s)

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

Max delivery height(m)

1.63

1.59

1.77

4.52

4.52

1.61

6.32

6.32

Conveying
capacity

m3/h

160

160

160

125

125

160

125

125

t/h

145

145

145

112

112

145

112

112

Angle of repose(°)

13°59′

9°16′

6.5°

10°~22°

10°~22°

3.81°

10°~22°

10°~22°

Electric-
roller

Type

DY1.4

DY1.4

DY1.4

DY1.5

DY1.3

DY1.4

DY1.6

DY1.3

Power(KW)

2.2

2.2

2.2

3.0

1.1

2.2

4.0

1.1

Total-weight(kg)

518

604

892

1126

1071

1225

1491

1491

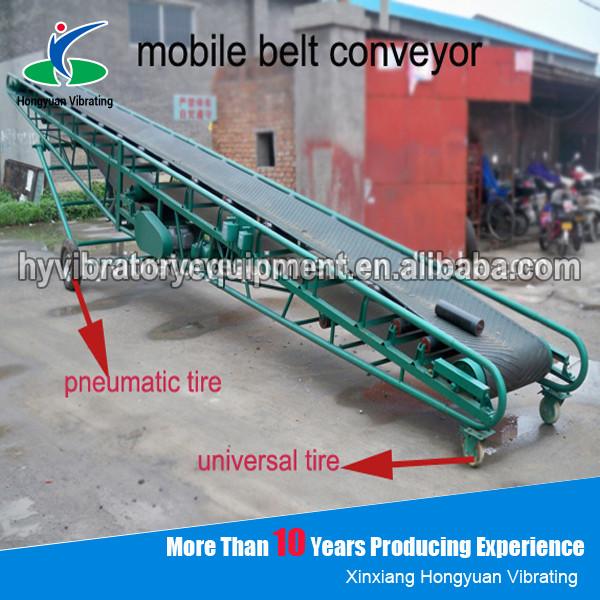

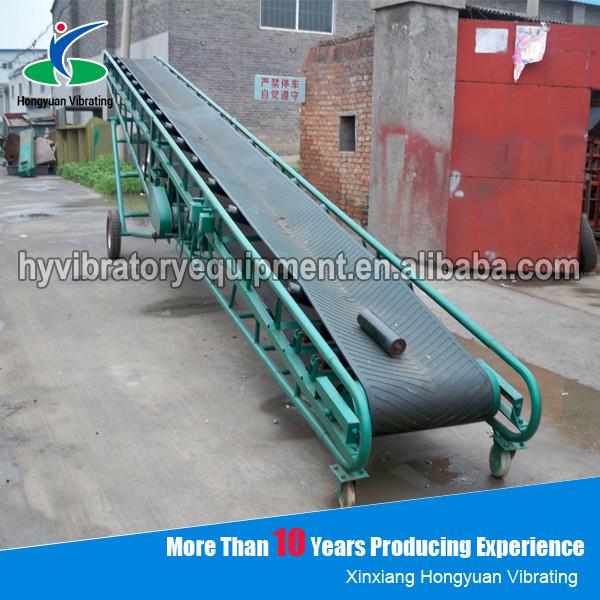

Detailed Images
