Small Spaces carrying lots of material with good mobility resin horizontal conveyor
Small Spaces carrying lots of material with good mobility resin horizontal conveyor
Specifications
Brand Name :
hongyuan
Model Number :
XL-6-100
Certification :
ISO,CE
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
USD 650~1150 /Set
Payment Terms :
T/T, L/C,, Western Union, MoneyGram
Supply Ability :
300 Set/Sets per Month
Delivery Time :
Shipped in 2 days after payment
Packaging Details :
In standard ply wood boxes
Name :
good mobility resin horizontal conveyor
Grand :
HongYuan
Type :
Screw Conveyor
Color :
choosable
Pipe Material :
premium pvc material
Condition :
New
Voltage :
220v/380v
Capacity :
5-15t
Application :
Agricultural Industry
Length :
6m, 8m, 10m, 12m
Description
Small Spaces carrying lots of material with good mobility horizontal conveyor

Product Description

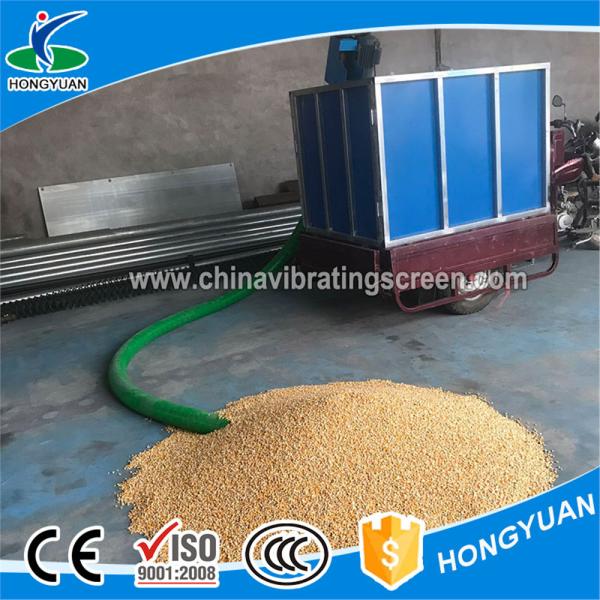

Small Spaces carrying lots of material with good mobility horizontal conveyor is a new designed for grain suction, entrucking, stack transfer and storage in village.

It has the features of small area, light weight, easy movable, high effeciency and low rate of brokage. the small suction machine is widely used for many places with safty and relibality. such as individual farmer, grain professional farmers and agricultural cooperativies.

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Detailed Images

Structure of screw elevating conveyor

  • Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
  • Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
  • Driving device: Motor, belt pulley, transmission belt and safe cover.
  • Inlet device and discharge device.

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Product Features & Procedure

Small Spaces carrying lots of material with good mobility horizontal conveyor is easy to carry and operated and is one convenient portable grain inhaling suction equipment.

  • It has the feature of small volume, large power, convenient to carry.
  • The power source can adopt the single phase which is applied for home use.
  • Man power saving ideal machine for truck loading.
  • Large capacity at 10-15 ton/h
  • Customized length is supported(6meters,8meters,10meters is available)
  • Lifting height is 3 meters

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

packing and delivery

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Small Spaces carrying lots of material with good mobility resin horizontal conveyor

Technical Data

Model No. Length (Meters) Pipe diameter

Loading

Capacity(t/h)

 Motor phase-power(kw) Installation Structure Conveying height
XL-100- 6 6 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-100- 8 8 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-100- 10 10 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-100- 12 12 100mm 5-8 Single phase-220V-3kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 6 6 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 8 8 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 10 10 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
XL-160- 12 12 160mm 15-20 Three phase-220V-4kw Vehicle mounted Steel screw blade inside 3-4m
