Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine
Specifications
Brand Name :
Hongyuan
Model Number :
HYL-25
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1set
Price :
USD 1000-1000 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
7-15 working days after receiving your deposit
Packaging Details :
In standard fumigation or wooden case or as your request
Type :
Agricultural machinery
Use :
Cleaning
Condition :
New
Voltage :
220,380v or as your request
Dusting power(kw) :
1.5kw
Total power(kw) :
3
Color :
Choosable
Warranty :
1 Year
Noise :
75DB
Application :
wheat, highland barley , rice, corn, soybean, cotton seeds etc.
Description

Semen cassiae corn bean remove clutter from the stone sorting machine

Semen cassiae corn bean remove clutter from the stone sorting machine

Product Description

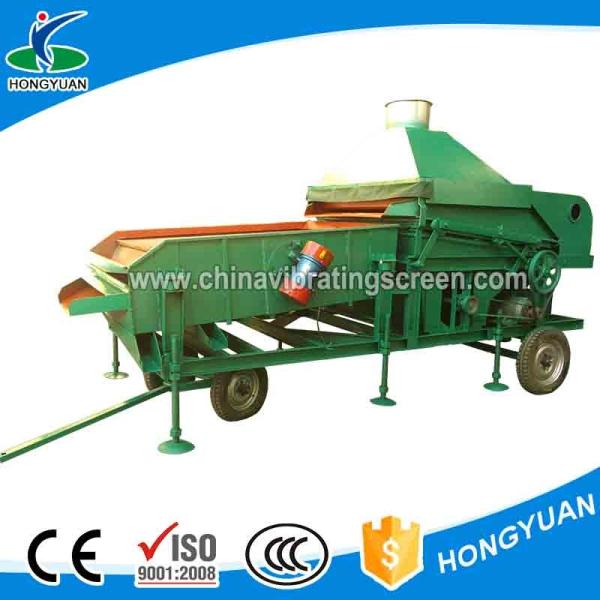

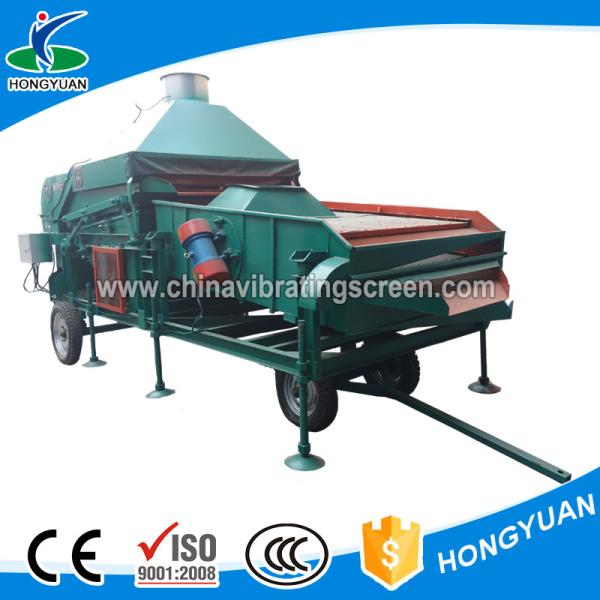

There are three layers of sieve bottom of this machine. At first,the front screen will sort out the dust and samilar impurities. Then the main fan will select at last part. After the grains finished cleaning, it will be casted out by Grain Casting Machine to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. First layer is for the big impurity, second layer for small impurity, three layer is for half a grain, and fourth layer for sand etc.

The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain thrower without wind".

Model No

Capacity(T/H)

Dimensions(mm)

Motyor power(kw)

HYL-25-Ⅲ

≤20

5010*2100*1950

 7.5
+1.5

HYL-8

5-8

2800*1350*1500

4

+3

Semen cassiae corn bean remove clutter from the stone sorting machine
Semen cassiae corn bean remove clutter from the stone sorting machine

Functions

This new type grain winnowing machine is suitable for grains,corns,wheat,sorghums,millets,rapeseeds,sunflower seeds,beans and so on .It is widely applied in the livestock breeding, small farm, small feed producing company,grain and cooking oil processing factory,wind plant,chemical plant and pharmaceutical factory etc.

Semen cassiae corn bean remove clutter from the stone sorting machine

Semen cassiae corn bean remove clutter from the stone sorting machine

Semen cassiae corn bean remove clutter from the stone sorting machine

Main Features

  • With wheels , it is very easy to move .
  • With hand crank , you can use it for manual or electrie
  • The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.
  • Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or throwing demand.
Model No Dimensions(mm) Weight(T) Power(kw) Revolving speed(R/min) Rotating speed(r/min) suction ventilator(r/min) Angle Gravity platform Angle of Screening Amplitude(mm) Capacity(T/H)
HYL-25-Ⅲ 5010X2100X1950 1.98 7.5
+1.5
+1.1		 1440 800 1450 63℃ 33℃ 24 ≤20
Semen cassiae corn bean remove clutter from the stone sorting machine

1. Dust removing blower 2.Observation hole

3.Plate 4. Adjust the air pressure

5. Adjust the propotion of screen volume 6.Vibrating Motor

7. Adjust the height 8. Finished grain outlet

9. Coarse cereals outlet 10. Main air blower

11.Feed inlet 12. Separation platform

Semen cassiae corn bean remove clutter from the stone sorting machine

Detailed Images

Semen cassiae corn bean remove clutter from the stone sorting machine

Semen cassiae corn bean remove clutter from the stone sorting machine

Semen cassiae corn bean remove clutter from the stone sorting machine

Packing & Delivery

Packaging Details

Packing in standard fumigation plywooden box by LCL.

Nude packing if by FCL

Semen cassiae corn bean remove clutter from the stone sorting machine

Semen cassiae corn bean remove clutter from the stone sorting machine

Note:

The HYL-25-Ⅲ grain seed screen cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc

Feeding ways: bucket elevator

Semen cassiae corn bean remove clutter from the stone sorting machine

Related Products

TD Series Bucket Elevator

Movable 4 meters height Vertical Feeding Bucket Elevator

Semen cassiae corn bean remove clutter from the stone sorting machine

Grain Polishing Machine.

Make Grain Beans Bright and Clean.

Semen cassiae corn bean remove clutter from the stone sorting machine

FAQ

1.Q: How can I get a suitable model?

A: Please tell me your material and your purpose to use the machine as well as your capacity.

2.Q: Can I choose my favorite color?

A: Yes, any color you want is acceptable.

For more information on cleaning beans moldy removing grain polishing equipment contact us freely by:
E-mail: cnhongyuan@chinavibratingscreen.com
Mob/Whatsapp/Wechat: +8615560250277
Skype: zhu.sunshine

QQ: 70752106
Website: www.chinavibratingscreen.com

Website at Alibaba: hongyuanzd.en.alibaba.com

Name: Carrie
