Handpicking pure superior rapeseed vibrating

cleaner sieve equipment

Product Description

Rapeseed screening machine is suitable for small and medium-sized starveling, on-site to receive food screening directly throw grain into the warehouse and grain piles. This machine belongs to the multi-purpose machinery such as corn, soybeans, wheat, replace the screen when you need, 8 to 14 tons per hour, select degree 99%.

Rapeseed screening machine can change according to the grain particle size screen mesh, suitable for corn, soybeans, wheat, rice, sunflower seeds and other grains. This machine is compared with other general grain screening machine, cleaning dust produced when grain, greatly changed the cleaning sieve environment.

Working Principle

Separation principle of vibrating screen is set according to the geometry characteristics of seed, seed varieties and species is different, the size is also different, choose changing sieve in different piece, can meet the requirements of separation.

Working Process

The cleaning sieve for three layers of the bottom of the screen, first through the first screening of the big screen in front of clutter and fine soil and small cleaning, have main blower prior to discharge of the air separation cleaning, clean up after another in the front of small grain machine to mass ejection at a distance, eventually achieve the grain of the mould and the grain containing small impurities.

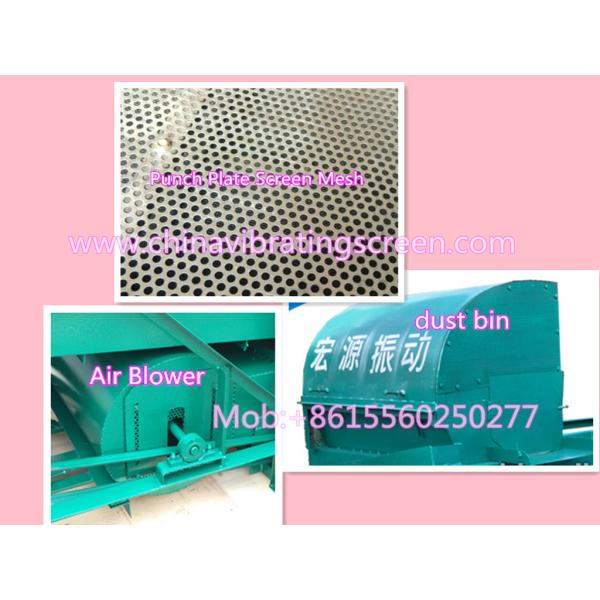

Product Details

Product Advantage

This machine is compared with other general grain screening machine, cleaning dust produced , greatly changed the cleaning sieve environment. The machine with centrifugal fan, dust catcher, close the wind discharger, total power is 7 KW, mobile convenience, cleaning clarity can reach more than 97%, the cleaning quantities is: 8-14 tons/hour.

Product Categories

Cleaning & Bagging

This machine's main task is to remove the impurity in the food, the final food outlet facilitate food bag, binning, storage.

Cleaning & Throwing

This machine's main task is to remove the impurity in the grain, the back is a throwing equipment, the cleaned grain after stroke can be according to the differences in the quality of the grain is more effective to eliminate mildew grain, separated particle size.

Packing & Delivery

Packing in standard fumigation ply wooden box.

Packing Size:3180mm(L)*1650mm(W)*1730mm(H)

Related Products

Name :Grain Screw Conveyor Machine

Product Description: This machine is one kind of vehicle mounted bulk grain inhaling conveyor and used for truck loading purpose.

Name :Bucket Elevator Machine

Product Description : This machine is the new cute machine which we designed according to the customers' actual needs. With universal wheel and lock it is easily move or stop on the ground surface. With small cubbage, it is ideal feeding device for silo, sieving machine or filling bagging machine.
