SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering
SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering
SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering
SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering
Specifications
Brand Name :
EVERSUN
Model Number :
YS
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000SETS/YEAR
Delivery Time :
within 7-15 work days
Packaging Details :
Standard export wooden package
Name :
Ultrasonic sieve machine
Color :
Optional
Diameter of screen :
16~72 or customized
Material :
Carbon steel, SUS304/316L,
Layer :
1~5
Clearing System :
Ultrasonic cleaning system
Description

Product introduction

SUS/ Carbon steel Ultrasonic Vibrating Sieve Machine For fine Powder Siftering

Ultrasonic vibrating sieve also called ultrasonic vibro sifter is composed of ultraonic vibration system and vibro sieving machine.With unique technology,the ultrasonic system will transmit hugh-frequency micro vibration to the mesh.Plus the original vibro of machine,the sieving output,quality and capacity can be dramatically increased.Also mesh can do perfect self-cleaning to reduce the downtime for our clients.
Ultrasonic vibrating sieve has a single layer of ultrasonic grid two discharge port design, double layer ultrasonic grid is a tow two type ultrasonic grid, three discharge port design, an external type ultrasonic instrument two ultrasonic probes. Special non-calibration ultrasonic vibrating screen equipment, such as with bin, bottom cylinder raised, mobile, open type ultrasonic vibrating screen. It is suitable for 40 -635 mesh especially 100 mesh to fine particles.

Product parameter

Model
Diameter
(Inch)
Sieving area
(m2)
Screen mesh
Layer
Motor Power
(kw)
B-16
16
0.0907
40-635
1-5
0.18
B-24
24
0.2289
0.25
B-32
32
0.4183
0.55
B-40
40
0.6359
1.1
B-48
48
0.9400
1.1
B-60
60
1.5386
1.5
B-72
72
2.2687
4
Support customization

SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering

SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering

Features & Advantages

1) Ultrasonic vibrating screen to solve the strong adsorption, easy agglomeration, high static electricity, high fine, high density, light weight screening problems;

2) Ultrasonic vibrating screen screening accuracy can be increased by 1-100%, output can be increased by 1-20 times;

3) Can be widely used in pharmaceutical, metallurgy, chemical, mineral processing, food and other industries;

4) Effectively solve the problem of network blockage;

5) Avoid the use of bouncing ball, do not pollute the material, fully protect the quality of screening materials;

6) The output amplitude of the ultrasonic module is adjustable, suitable for the screening of different powders;

7) Unique external ultrasonic exchanger design, avoid contact with materials, avoid material degeneration due to the heat of the transducer, can better ensure the normal operation of equipment, easy maintenance.

Working principle

Ultrasonic screening system is composed of ultrasonic resonant power supply, oscillator and resonance ring. The high-frequency electric oscillations generated by the ultrasonic resonant power supply are converted from the oscillator to high-frequency oscillating waves, which are transmitted to the resonance ring to generate resonance, and then the vibration is uniformly transmitted to the screen surface by the resonance ring. The material on the screen is made of low frequency vibration by the vibrating screen motor at the same time, superimposed on the ultrasonic vibration, which can not only prevent mesh plugging, but also improve the screening yield and quality.

SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering

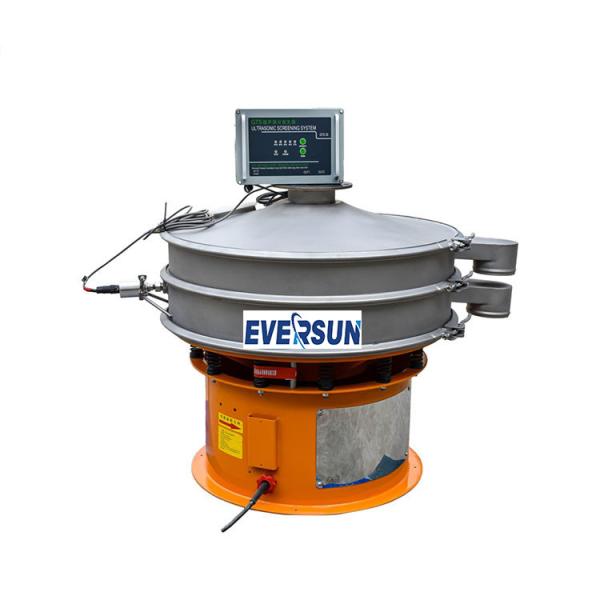

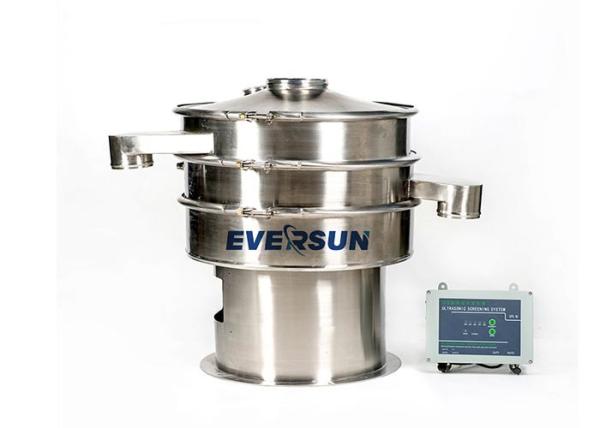

Product picture

SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering

SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering

SUS / Carbon Steel Ultrasonic Vibrating Sieve Machine For Fine Powder Siftering
