Specifications
Brand Name :
EVERSUN MACHINERY
Model Number :
EZXS-1020
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$2000~$7000 per set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000SETS/YEAR
Delivery Time :
within 15 work days
Packaging Details :
Standard export wooden package
Material :
Stainless Steel
Layer :
1~5
Motor :
Italy OLI motor, Swiss ABB motor
Mesh Size :
2~500
Application :
Food, Chemical, Pharmacy, Mining.,etc
Item :
Vibrating Screen Equipment
Type :
Linear
Description

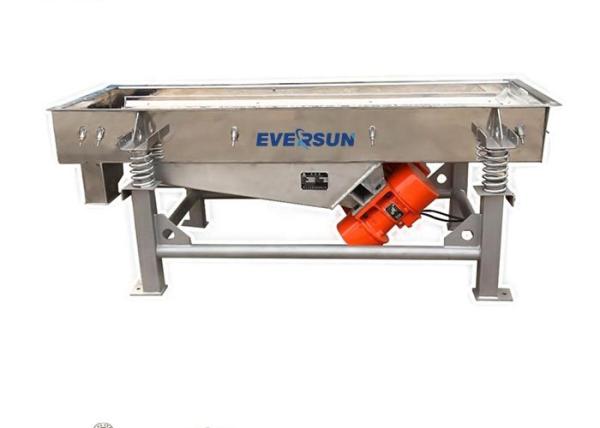

High Efficiency Pulverized Coal Linear Vibratory Sifter Machine

Working Principle

The material enters the feed port of the sieve machine uniformly from the feeder, and several grading products are produced through the multi-layer screens.

Different grading materials are respectively discharged from the respective outlets.

The EVERSUN linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh,

a vibration absorbing body an a vibration damping device. The excellent horizontal motors are used as the

power source to make the material be sifted on the screen while moving forward in a straight line. It can be

equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection,

washing, dehydration and other purposes.

Product Introduction

Name: High Efficiency Stainless Steel Pulverized Coal Linear Vibratory Sifter
Mesh Size 2~500
Motor Italy OLI motor, Swiss ABB motor
Voltage Customized
Materials Carbon Steel, SUS304, SUS316L
Application powder, granule, bulk solids, liquid
Customized service Available

High Efficiency Pulverized Coal Linear Vibratory Sifter Machine

Features and Advantages

  • Easy to repace screen and parts
    Using a special grid structure design, the screens and parts can be easily changed and tighten.
  • High capacity and Friendly working space
    With excellent structuer of machine and motors, the output is very high and working noise is low.
  • High sieving precision
    The material has a long stroke on the screen surface, high screening precision and large processing capacity.
  • Movable screening process
    At the same time of screening, the material has been transported over long distances.
  • Suitable for different screening sizes
    Change the screen spacing and inclination according to material size, permeability probability and productivity

Product Details

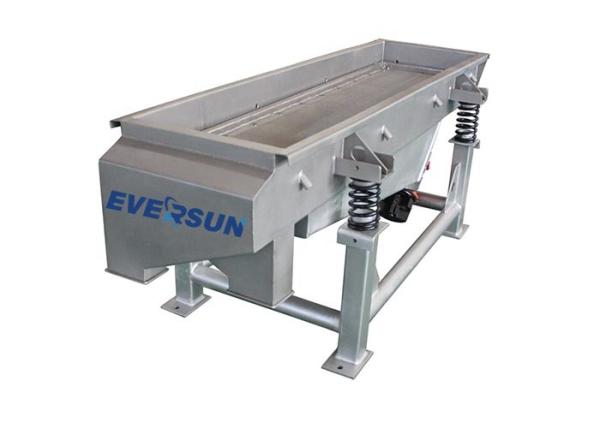

High Efficiency Pulverized Coal Linear Vibratory Sifter Machine

Application

EVERSUN linear screens are running in various production lines:chemical,food,ceramic,pharmaceutical,mineral,

plastic,metallurgy,food,etc.and its durability has been fully verified.

High Efficiency Pulverized Coal Linear Vibratory Sifter Machine

Technical Parameter

Model Screen Specification(mm) Layers Mesh Size(mm) Particle Size(mm) Vibrating Frequency(r/min) Double Amplitude(mm) Power(KW)
EZYS-525 500X2500 1-6 0.074-10 0.06-15 960,1450 4-8 2X0.4,2X0.75
EZYS-1020 1000X2000 1-6 0.074-10 0.07-20 960 4-8 2X0.75,2X1.5
EZYS-1025 1000X2000 1-6 0.074-10 0.07-15 960,1450 5-8 2X0.4,2X0.75
EZYS-830 800X3000 1-6 0.074-10 0.1-20 960 5-8 2X0.75,2X1.5
Machine can be customized based on your need

Our Service

1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.

FAQ

1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test

on every machine before delivery.

2. How about price?
we are factory and be able to give you the best price with good quality, and we have a policy that “ for saving

time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can

be given according to quantity”.

3. Service and Payment Terms?
A. We usually accept T/T, L/C;
B. We take pictures of finished products before delivery.
