EXZS High Capacity Circular Vibrating Screen Customized Sieving Machine For Industry
EXZS High Capacity Circular Vibrating Screen Customized Sieving Machine For Industry
EXZS High Capacity Circular Vibrating Screen Customized Sieving Machine For Industry
EXZS High Capacity Circular Vibrating Screen Customized Sieving Machine For Industry
Specifications
Brand Name :
EVERSUN MACHINERY
Model Number :
EXZS-1500
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000SETS/YEAR
Delivery Time :
within 7-15 work days
Packaging Details :
Standard export wooden package
Name :
Sieving Machine
Diameter :
560-1730mm
Layer :
1~5
Screen mesh :
2~1000
Motor :
Italy OLI motor, Swiss ABB motor
Application :
Fine materials
Description

Product Introduction

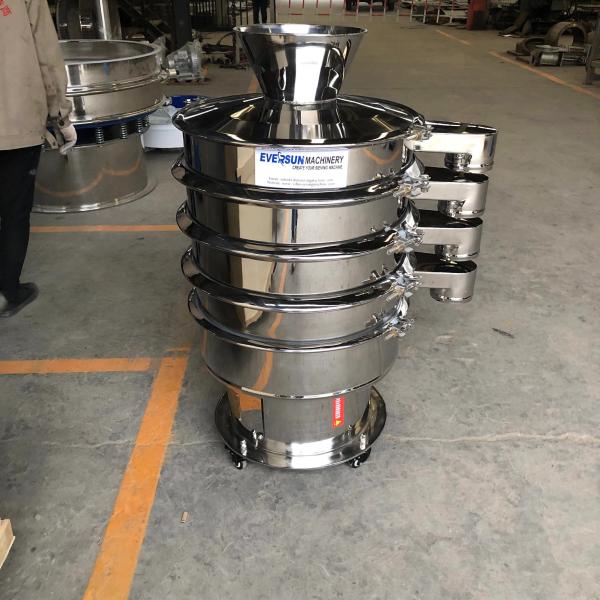

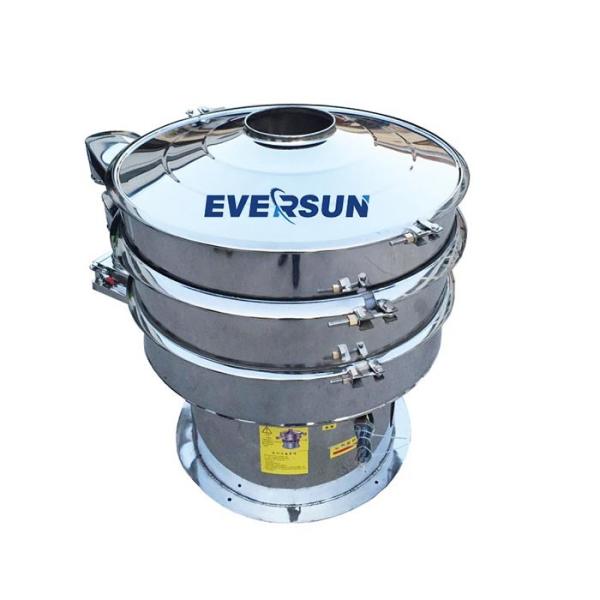

EXZS High Capacity Circular Vibrating Screen Customized Sieving Machine For Any Industry

Circular Vibrating Screen is a kind of high-precision fine powder screening machinery, all kinds of powder industry any particle, powder, mucus can be screened within a certain range. By the upright motor as a source of excitation, the motor is installed at both ends of the eccentric hammer, the motor rotation motion into horizontal, vertical, tilt three dimensional motion, and then the movement to the screen surface, so that the material on the screen surface to do external expansion of the involute motion, so the series of vibrating screen called rotary vibrating screen. Rotary vibration screen has the advantages of long track of material running, screen surface utilization rate, adjust the upper and lower two end of the hammer phase Angle, can change the movement of the material on the screen surface. The material can be fine screening, probability screening and so on.

Technical Parameter

Model Screen surface diameter(mm) Layer Screen mesh Effective screening area(m2)

Power

(KW)
EXZS-600 Φ560 1-5

≤1000

 0.2289 0.25~0.55
EXZS-800 Φ760 1-5

≤1000

 0.4183 0.55~0.75
EXZS-1000 Φ930 1-5 ≤1000 0.6359 0.75~1.1
EXZS-1200 Φ1130 1-5 ≤1000 0.9499 1.1~1.5
EXZS-1500 Φ1430 1-5 ≤1000 1.5386 1.5~3
EXZS-1800 Φ1730 1-5 ≤1000 2.2687 3~4.5
Every part of the machine can be customized according to your need
