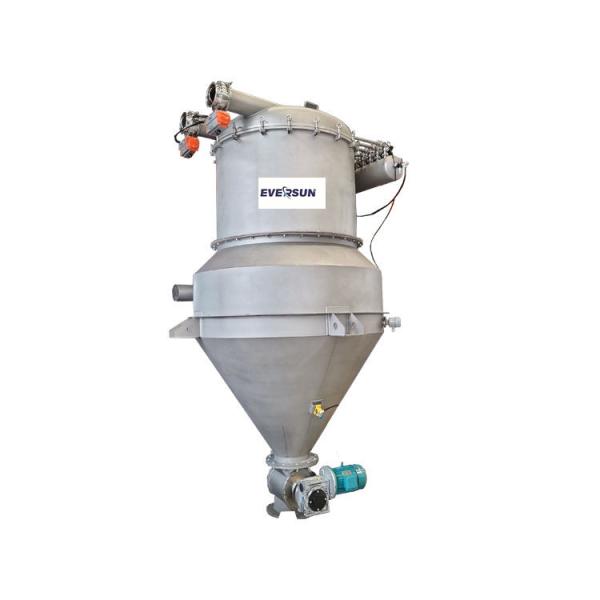

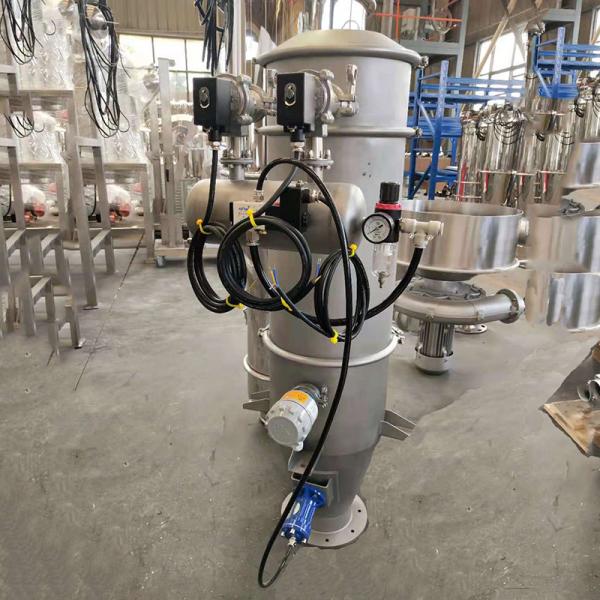

QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns
QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns
QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns
QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns
Specifications
Brand Name :
EVERSUN MACHINERY
Model Number :
QVC
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000SETS/YEAR
Delivery Time :
within 7-15 work days
Packaging Details :
Standard export wooden package
Name :
Vacuum feeder
Airflow :
180~72 L per minute
Air pressure :
0.4~0.6 MPA
Material :
Carbon steel,SUS304/316L
Conveying distance :
Customized
Description

Product introduction

QVC Pneumatic Vacuum Conveyor Air Drive Vacuum Feeder For Coffee Beans And Corns

Vacuum conveyor is a kind of equipment for transporting powder or granular materials,which can be used with a variety of packaging machines, shredders, vibrating screens, mixers and other equipment.When the vacuum conveyor is transporting the material, it needs to use the equipment suitable for the nature of the material to transport, it should not transport easy to caking or large viscous materials, otherwise in the material filtration will appear blocking or poor filtration, which will affect the transportation of equipment. Therefore, the material should be in accordance with the nature, shape and other conditions to choose the use of suitable equipment to transport materials.

Equipment features: Design and manufacture in strict accordance with GMP specifications Airtight, avoid dust leakage, small size, easy to install, easy to disassemble and clean Precision polishing of inner wall, no sticking material Thoroughly solve the phenomenon of powder stratification Low noise, no vibration high efficiency and energy saving Intelligent control, high automation, simple operation.

Product parameters

Model Delivery(kg/h) Warehouse volume(L) Operating pressure(Mpa) Compressed air consumption(N/min)
QVC-1 50-300 1.1 0.4-0.6 180
QVC-2 100-700 6.0 0.4-0.6 360
QVC-3 300-1500 12.0 0.4-0.6 720
QVC-4 600-3000 42 0.4-0.6 1440
Machine can be customized according to your needs

QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And CornsQVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns

QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns

The picture below is a production line we designed for an UK customer -.If you want to buy our products or design drawings, please contact us.

Production process
1.feeding black tea to dumping station
2.vacuum conveyor conveying black tea from dumping station hopper to sieve machine
3.screening black tea in sieve machine
4.separated black tea discharge to a small buffered silo
5.vacuum conveyor conveying separated black tea from buffered silo to 1000L ribbon blender
6.separated balck tea to the ribbon blender mixing
7.vacuum conveyor conveying mixed black tea from mixer hopper to a 1000L silo
8.vacuum conveyor conveying mixed black tea from 1000L silo to the filling machine

QVC Pneumatic Vacuum Conveyor Feeder Air Driven For Coffee Beans And Corns

Application

Vacuum conveyor is mainly used for conveying powder and particle materials, such as bulk drug powder, chemical powder, gold oxide powder, capsules, tablets, small food particles. At the moment. There are many pharmaceutical, chemical, food, milk powder and other parts of the world are using the vacuum conveyor to bring convenience and cleanliness.

Specific material conveying type of vacuum conveyor:

1. Plastic: polyethylene particles, polystyrene particles, polyurethane particles, recirculated rubber, vinyl - propylene particles

2. Food: sesame powder, baking agent, beans, edible mushrooms, cheese powder, cocoa powder, coconut, crystallized sugar, curry powder, juice powder, lactose, purple flower, alfalfa, pepper powder, starch, baking powder

3. Chemistry: activated carbon powder, aluminum chloride, aluminum hydroxide, zinc stearate, filter cake, sodium, bentonite, calcium carbonate, diatomite, soot, iron powder, tungsten powder, silicon carbon, silicon dioxide, dicyandiamide powder, zeolite

4. Pigments and coatings: dye powder, epoxy resin, acrylic polymer, titanium dioxide, toner powder, PTFE powder

5. Metal powder: aluminum powder, cobalt powder, iron powder, tungsten powder

6. Others: clinker cement, grape seeds, casting auxiliary materials, welding powder, quartz grains, sand grains, gravel.
